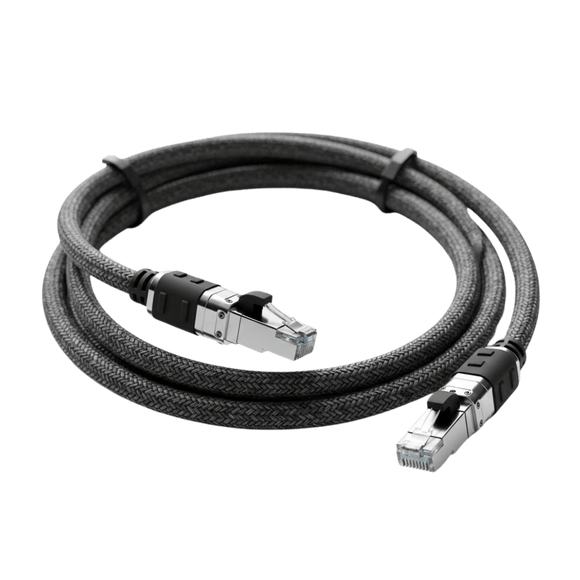

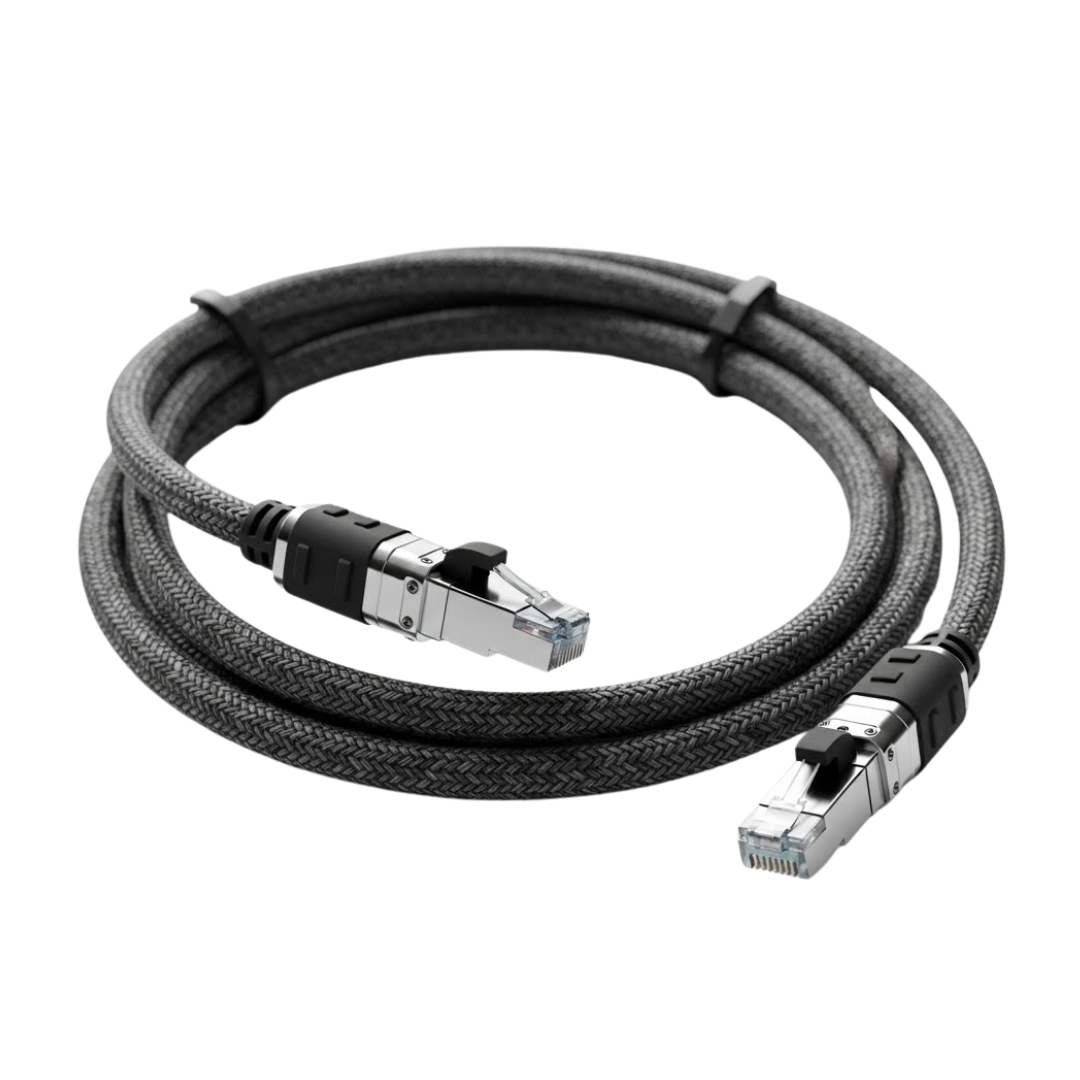

Ruggedized Cable Assemblies Manufacturing
Ruggedized cable assemblies are built for harsh, high-stress operating environments, delivering power and signals where standard cables would fail prematurely. As infrastructure grows in harsh environments, the demand for rugged cable assemblies grows as well. Market estimates from Emergen Research project the harsh environment cable assembly market to reach $4.8 billion by 2034, driven by growth in industries like defense, industrial, and energy infrastructure.
OurPCB manufactures custom ruggedized cable assemblies to IPC-A-620 standards. Each assembly is engineered for mechanical resilience and electrical stability. Failure is not an option in these environments as they can cause downtime, safety risks, and costly repairs.
What are Ruggedized Cable Assemblies?
Ruggedized cable assemblies are reinforced electrical interconnects designed for severe conditions. They combine durable conductors, reinforced insulation, and protective outer layers. Assemblies involving ruggedized cables often include strain reliefs, overmolding, and environmental sealing.
These cables are made to maintain signal integrity under shock, vibration, and repeated flexing, keeping essential systems alive in extreme conditions. Their designs are customized to meet mechanical, electrical, and environmental requirements.
What are the Benefits of Ruggedized Cable Assemblies?
The primary benefits of ruggedized cable assemblies—high environmental resistance, mechanical durability, and reduced maintenance—deliver critical safety and reliability across diverse industries. Explore the key benefits in more detail below:
- Materials withstand temperature extremes, UV exposure, oils, and industrial chemicals.
- Sealed constructions prevent moisture and dust ingress in outdoor or washdown environments.
- Reinforced jackets resist abrasion, crushing, and impact damage.
- Strain reliefs and overmolds reduce fatigue at connector transition points.
- Longer service life lowers replacement frequency and maintenance costs.
- Stable electrical performance prevents intermittent faults and system failures.
- Cable designs are optimized for motion, flex life, or static installations.
- Shielding options protect sensitive signals from EMI and electrical noise.
Superior Field Reliability
- IP67-rated connectors resist complete dust ingress and withstand water immersion up to 1 m for 30 minutes.
- Marine-grade insulation materials provide chemical resistance against fertilizers, pesticides, and fuel exposure.
Extended Equipment Lifespan
- Temperature-resistant components function reliably from -40 °C to 105 °C, preventing heat damage in engine compartments.
- Reinforced strain relief and secure terminal connections prevent failures from constant diesel engine vibration.
Simplified Troubleshooting
- Color-coded wiring with clear detail reduces diagnostic time by up to 60%.
- Comprehensive documentation includes wiring diagram specifications specific to your tractor model.
Customization Options
- Exact-fit design ensures perfect compatibility with your specific Farmall or Cub Cadet restoration.
- Additional capacity options accommodate future implements or aftermarket electrical accessories you may add later.
Why Choose OurPCB for Ruggedized Cable Assemblies
Our capabilities in ruggedized cable assemblies extend far beyond standard manufacturing. OurPCB is built to support mission-critical applications where reliability, durability, and consistency matter most. We combine certified quality systems with flexible engineering and scalable production to support products from concept through long-term deployment.
- IPC-A-620 compliant manufacturing with documented process controls.
- Our inspection protocol covers all electrical, mechanical, and environmental requirements.
- Assemblies designed around your connectors, cables, and operating conditions.
- Support from early prototypes through full production programs.
- Efficient processes reduce lead times without compromising durability.
- Capacity supports both low-volume prototypes and high-volume production runs.
- We combine rugged cables with wire harnesses and PCB assemblies.
- Single-source manufacturing simplifies procurement and quality control.
Our Custom Ruggedized Cable Assembly Features
Every ruggedized cable assembly is engineered to match the demands of its operating environment. Material selection, connector choice, and mechanical protection are tailored to real-world conditions. Our approach focuses on durability, compliance, and long-term performance rather than generic configurations.
Compliance-Ready Materials
- ROHS-compliant materials used across all rugged cable assemblies.
- Low-smoke and specialized compounds available when required.
Connector Flexibility
- Support for circular, rectangular, sealed, and custom connector systems.
- Compatibility with industrial, military, and proprietary connector standards.
Environment-Specific Protection
- Additional jackets, braided sleeving, and armor for extreme abrasion resistance.
- Potting and sealing options for moisture and pressure protection.
Coverings and Reinforcement Options
- PVC, PUR, rubber, TPE, and braided over-jackets available.
- Heat shrink tubing and molded boots protect stress points.
Custom Cable Geometry
- Custom lengths, breakouts, and routing to match your equipment layout.
- Single-core, multi-core, or hybrid power-and-signal designs supported.

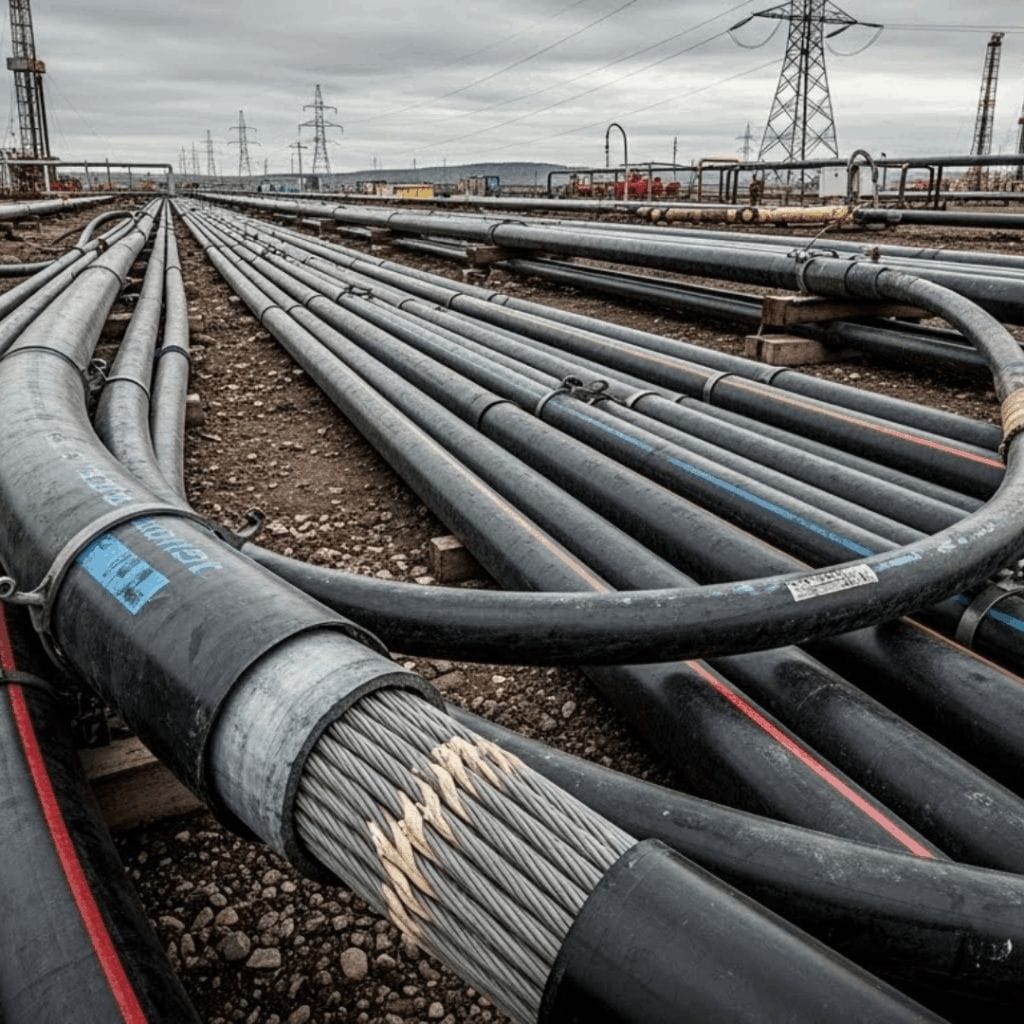

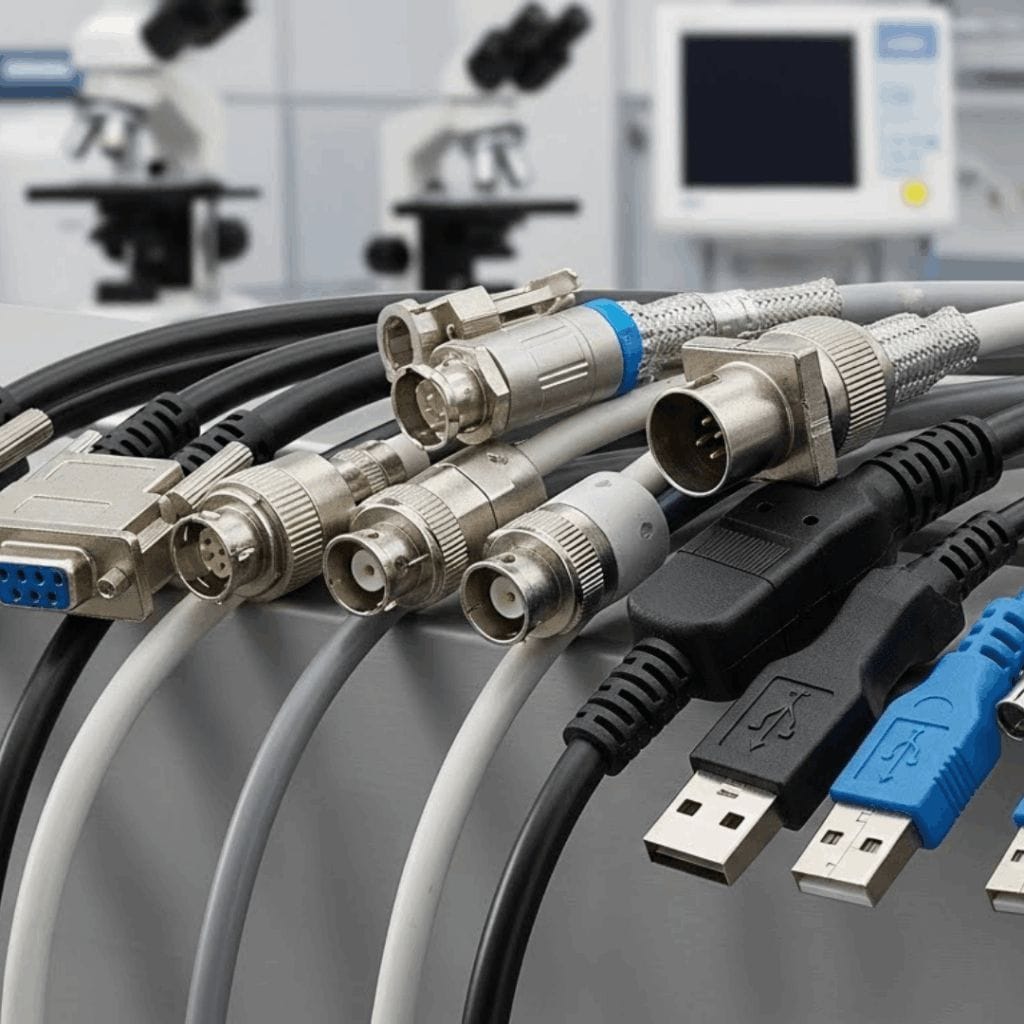

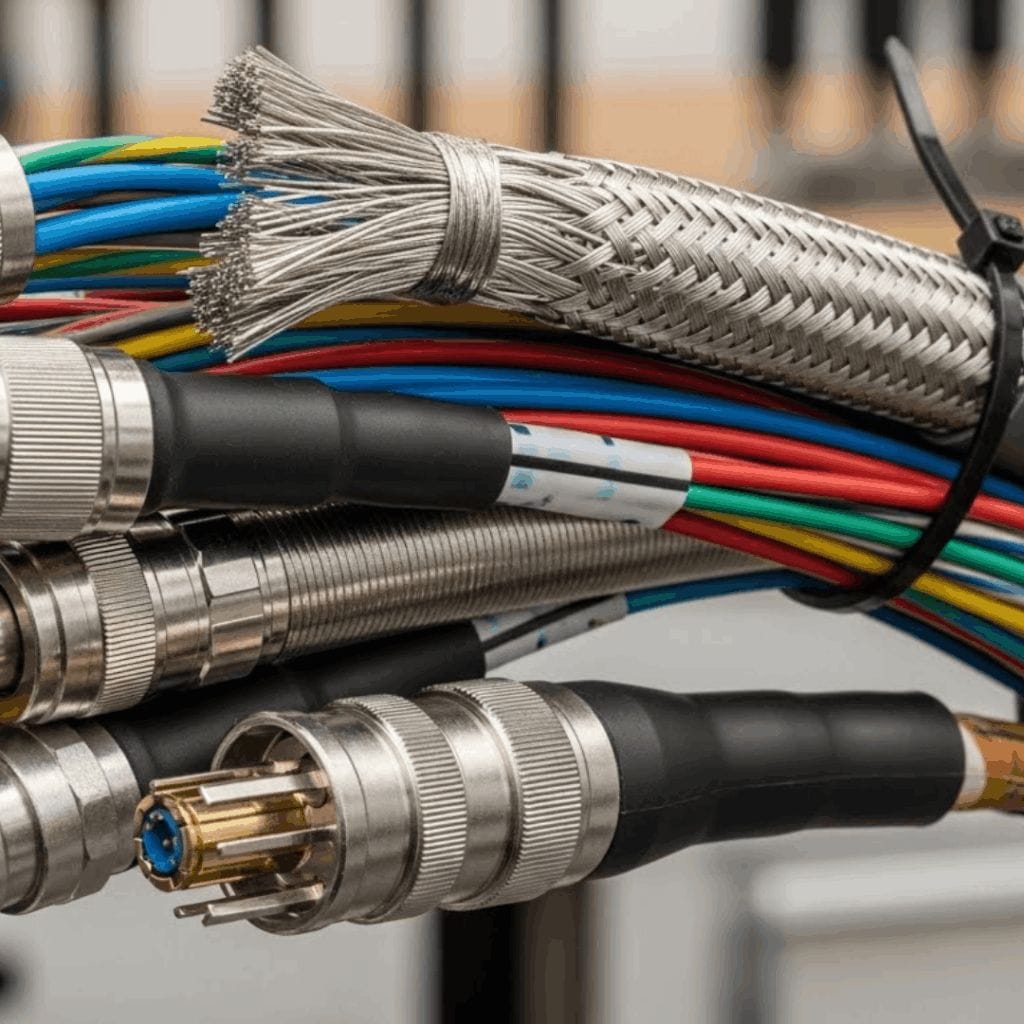

Applications and Industries
Millions of business and innovators use OurPCB

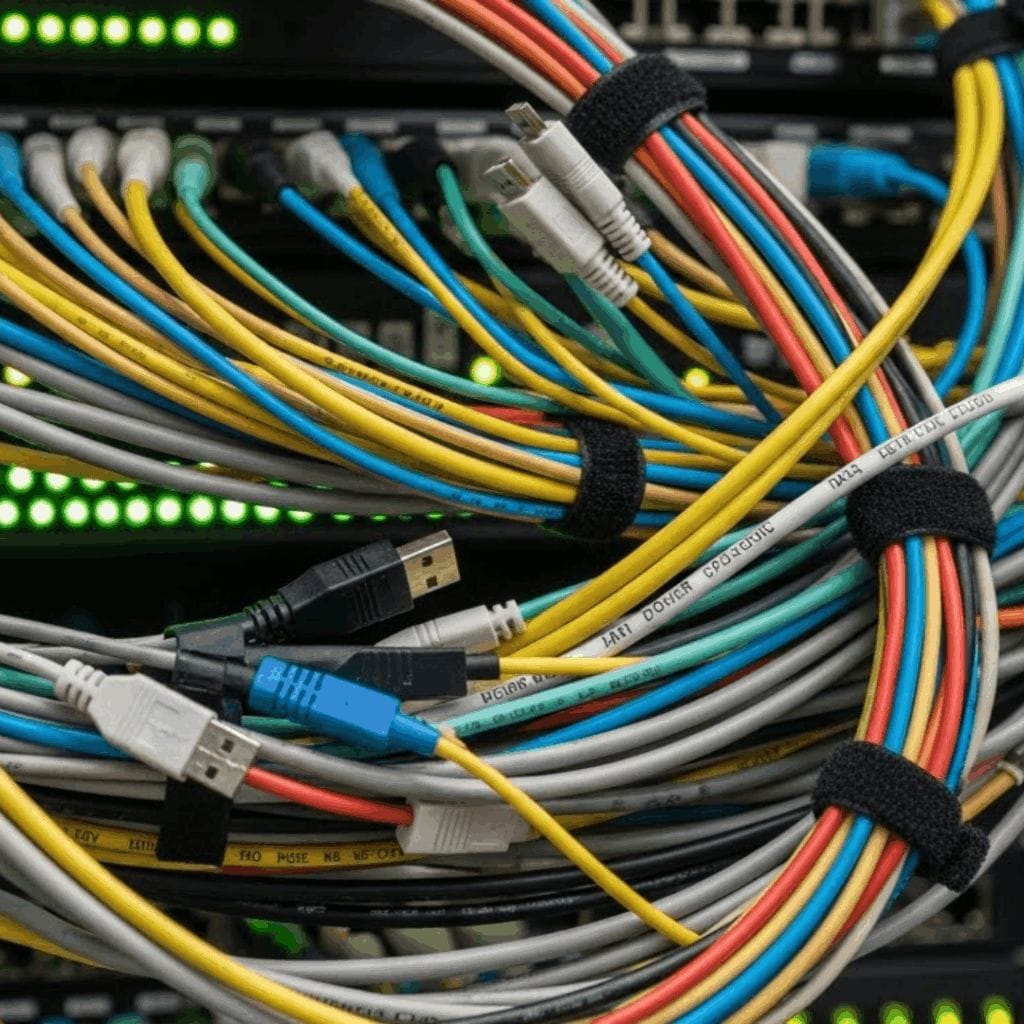

Technical Capabilities
OurPCB operates controlled production lines for ruggedized cable assemblies. We work with bare copper, tinned copper, and silver-plated conductors, and our insulation materials include XLPE, TPE, silicone rubber, and PTFE.
Our assemblies support operating temperatures from −40 °C to +150 °C. Shielding options include braided copper and aluminum foil constructions. Each assembly undergoes 100% continuity testing before shipment, guaranteeing quality and performance upon delivery.
Pull-force testing verifies termination strength and strain relief effectiveness, while environmental testing can include vibration, flex life, and thermal cycling protocols. Our production ranges from rapid prototypes to 10,000+ unit production runs.
Capabilities & Services
- Wire Gauge: 40AWG-120mm²
- Production Capacity: 10,000 pieces/hour
- Wire Cutting Service
- Wire Stripping Service
- Wire Marking Service
- Label Types
- Wire Ends Treatment
Custom Wire/Cable Service:
- Wire/Cable types
- Wire gauge
- Wire/Cable length
- Insulation/Jacket color
- Core numbers etc.
Custom Cable Assembly Capacities:
All kinds of cable assemblies including
- Electrical cable assembly
- Coaxial cable assembly
- Multi-core cable assembly
- Connector to board cable assembly
- Automobile communication cable assembly
- Power transmission cable assembly
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Reach us at
[email protected]
24 hours online
+86-199-30589219
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Ruggedized Cable Assemblies Manufacturing FAQs
How do I choose the right ruggedized cable assembly for my project?
Selecting the right assembly involves understanding environmental conditions, required signal or power types, connector style, and expected mechanical stresses. Matching materials and sealing levels to your specific application ensures long-term performance.
How does OurPCB ensure rugged cable assembly quality?
We ensure quality through certified materials, rigorous in-process inspections, and comprehensive electrical and mechanical testing that validates continuity, insulation integrity, and environmental resilience.
What lead times should I expect for ruggedized cable assemblies?
Prototypes typically ship in 5–10 business days, although production lead times depend on complexity, volume, and material availability.
