Custom Ribbon Cable Assembly OEM
As a leading ribbon cable assembly OEM manufacturer, OurPCB offers high-quality custom flat ribbon cable assemblies with 24 to 48-hour prototyping and automated IDC connector placement systems. Our automated manufacturing, coupled with integrated PCB services, ensures precise, reliable solutions that meet the highest standards.
Partnering with OurPCB eliminates multi-vendor complexity, providing direct access to accurate design information, automated manufacturing, and thorough quality validation.

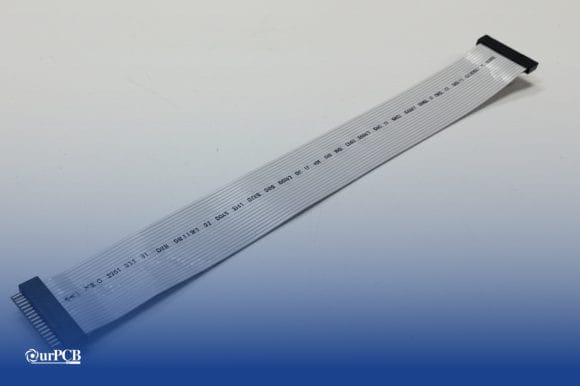

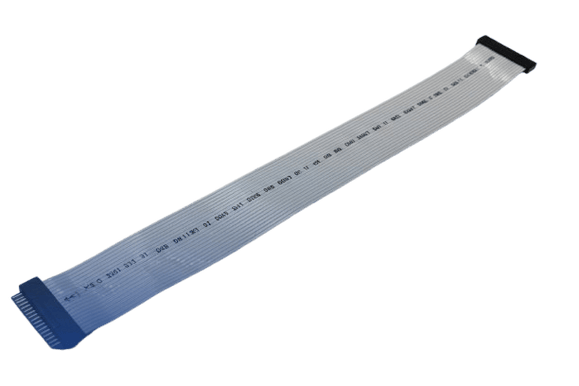

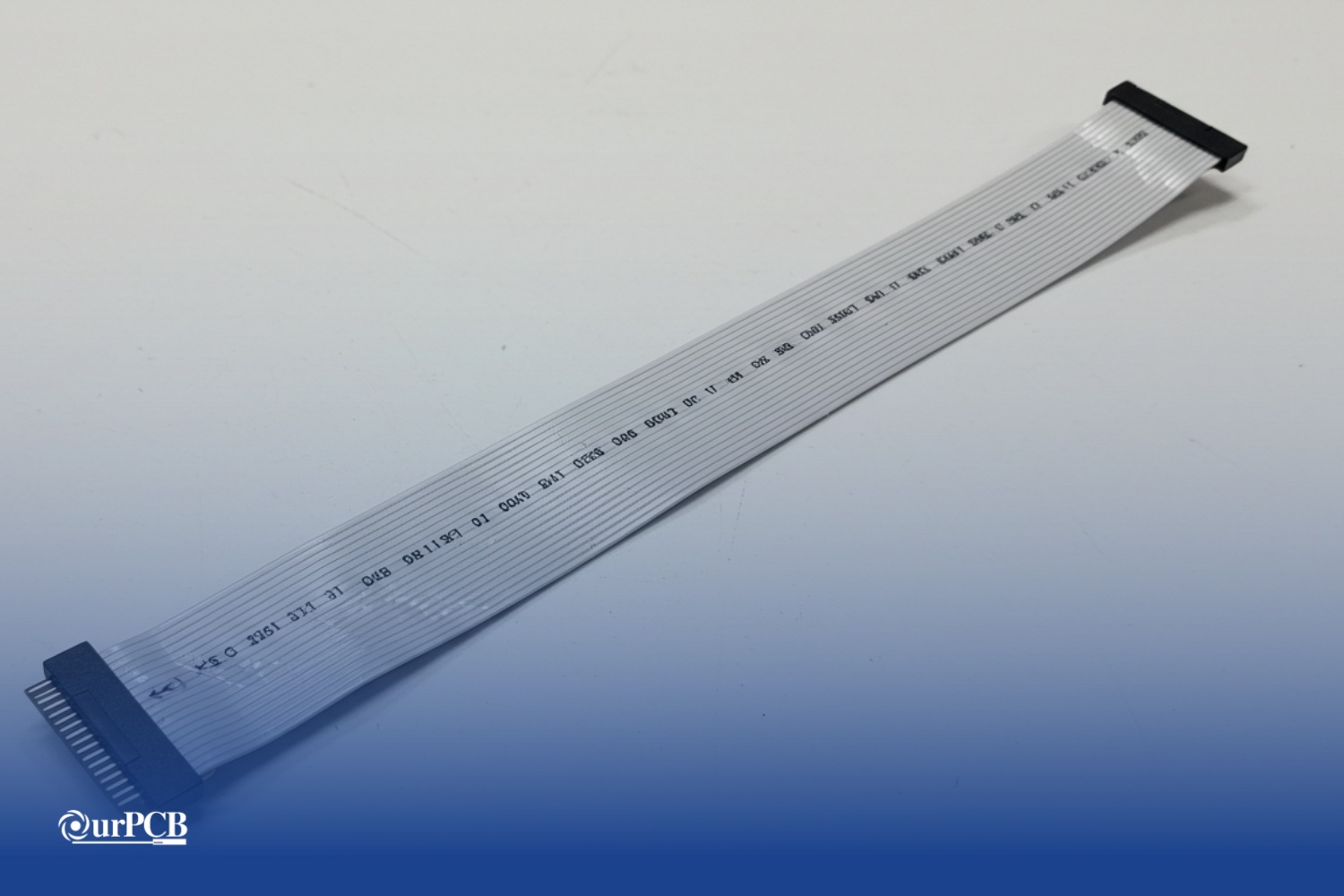

What is a Custom Ribbon
Cable Assembly?
Custom ribbon cable assemblies are really just flat cables with conductors next to each other. These cables have IDC (Insulation Displacement Connector) terminations made for connectivity in a couple of devices that have really tight spaces. The cable assemblies use conductor configurations, from 4 to 80 positions.
The pitch rules are usually between 0.025 inches and 0.156 inches for different kinds of needs. The flat rectangular shape means you can get wire routing in the smallest of spots. You can also do this while keeping signal integrity. This is done through controlled impedance and electromagnetic shielding.
Standard Conductor Configurations
| Pin Count | Common Applications | Pitch Options |
|---|---|---|
| 4, 6, 8, 10 | Simple peripherals | 0.050″, 0.100″ |
| 14, 16, 18, 20 | Computer interfaces | 0.050″, 1.27 mm |
| 24, 26, 34, 40 | IDE connections, hard drives | 1.27 mm, 2.0 mm |
| 50, 60, 64, 80 | High-density electronics | 0.635 mm, 1.27 mm |
Advanced Material Options
- Kapton polyimide for -269 °C to +400 °C applications with superior flexibility
- Nomex aramid for aerospace flame resistance and mechanical strength
- Teflon FEP for chemical resistance and low dielectric loss in RF applications
- PVC insulation for standard temperature ranges with cost-effective solutions
What are the Benefits of Custom Ribbon Cable Assemblies?
Custom ribbon cables provide superior space efficiency, manufacturing cost reduction, signal integrity, and installation reliability compared to traditional round cable solutions widely used in electronics.
- Flat ribbon cable design reduces cable routing volume by 50% compared to equivalent round cable bundles
- Flexible construction allows complex folding with pre-creasing to limit stress during installation in tight configurations
- IDC mass termination eliminates individual wire stripping and crimping operations for faster assembly processes
- Automated connector placement systems achieve 1500 terminations per hour with consistently high-quality results
- Controlled impedance specification maintains signal timing in high-speed digital applications up to 320MB/s transfer rates
- Twisted pairs within flat ribbon structures reduce electromagnetic interference and crosstalk in sensitive circuits
- Color code system prevents reversed connections, with brown for pin 1 identification and red for pin 2 marking
- Edge marking with colored stripes ensures proper orientation during connector mating and reduces installation errors
test
Why Choose OurPCB for Custom Ribbon Cable Assembly Manufacturing?
OurPCB combines advanced automated manufacturing with comprehensive PCB integration services, providing complete electronic assembly solutions with industry-leading quality certifications from our experienced engineering team.
- Automated IDC ribbon cable placement systems with ±0.1 mm precision tolerances and 99.97% fault detection capability
- Real-time impedance monitoring during manufacture ensures consistent 50Ω or 100Ω differential pair matching
- ISO 9001:2015 quality management with IATF 16949, ISO 13485, and AS9100D certifications for aerospace applications
- UL compliance testing with complete environmental stress screening for critical applications
- Single-source PCB and custom cable assembly manufacturer reduce vendor coordination complexity and short lead times
- Integrated EMI/RFI shielding design consultation with custom copper mesh and ferrite core integration
- 24-48 hour prototype delivery with same-day design review and stress analysis consultation upon request
- Custom pre-creasing capabilities with finite element analysis for complex folding applications
Factory-Ready for Ultra-Fine Assembly
Our dual 10,000 m² PCB assembly houses in Shenzhen and Shijiazhuang are equipped with high-speed SMT assembly lines capable of placing fine-pitch parts with ±25 µm tolerance.
Each line includes temperature- and humidity-controlled environments, active anti-static systems, and vacuum transport for handling thin or flex printed circuits.
Certified for High-Reliability Fine-Pitch Workflows
We are fully certified to ISO 9001, IATF 16949, and IPC-A-610 Class 2 & 3, supporting applications where fine-pitch PCB assembly must meet elevated acceptance criteria for solder joint geometry, lead coplanarity, and component body clearance.
Our QA workflows are built to handle fine-pitch PCBs requiring zero solder bridging and uniform joint fillets across dense arrays.
Inspection Systems for High Pin Count Devices
All assemblies involving ball pitch under 0.5 mm, QFN, or PoP packages undergo X-ray inspection, SPI, and AOI with 15 µm resolution optics.
We detect voids, open leads, insufficient solder, lifted terminations, and hidden shorts. This inspection process is a requirement for successful assembly when working with components that provide no visible solder access.
Engineering Review for Pitch-Specific Risks
Every fine-pitch electronic assembly receives a DFM and DFA review focused on stencil coverage, aperture tuning, pcb design limitations, and routing near fine-pitch ICs.
We assist in verifying pad design, thermal pad exposure, and via escape planning, important for high I/O packages like BGA and chip scale layouts where misalignment or solder blockage can compromise yield.
Turnkey Component Sourcing and Lot Control
We offer full assembly component sourcing through partners like Digi-Key, Mouser, and WPG, including traceable lots for hard-to-find or moisture-sensitive electronic components.
Components are stored under MSL-compliant conditions, with drying cabinets and vacuum packaging for all incoming fine-pitch parts.

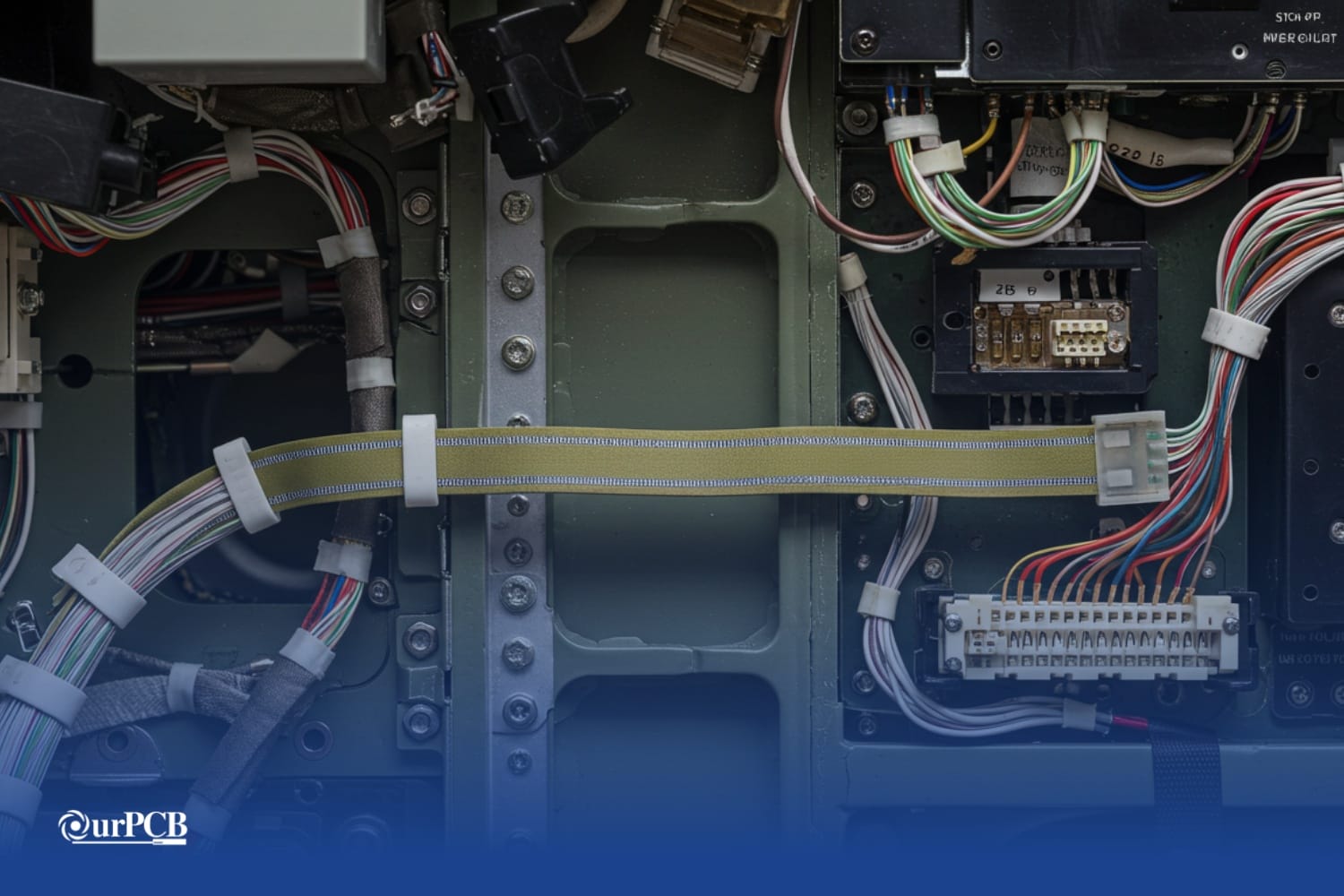

What Pitch Specifications and Connector Types are Available?
OurPCB manufactures flat cable assemblies with pitch specifications from 0.025 inches (0.635 mm) to 0.156 inches (3.96 mm) including standard 0.050-inch spacing for computer applications. Standard configurations include 0.3 mm FFC for flexible applications, 1.27 mm for IDE interfaces, and 2.0 mm for industrial power applications with various insulation displacement connectors. Connector systems encompass IDC, crimp contacts, and solder terminations with contact resistance below 0.1μΩ for power applications requiring low-resistance connections.
- MIL-DTL-83513 circular connectors with 500 mating cycles minimum for avionics
- MIL-STD-104 color coding compliance for military wire and cable applications
- AS9100D quality management for aerospace manufacturing with complete traceability
- Temperature cycling from -55 °C to +125 °C for avionics systems and critical electronics
- ISO 13485 medical device quality management with biocompatibility testing
- Flex cycle testing up to 500+ cycles for endoscopic camera applications requiring flexibility
- Custom flat ribbon configurations for space-constrained medical equipment installations
- 18 AWG to 30 AWG conductor size options for various current-carrying requirements
Automotive Quality Standards
IATF 16949 automotive quality management certification ensures consistent manufacturing processes with full traceability from raw materials through final assembly and test procedures. This standard mandates statistical process control, continuous improvement protocols, and comprehensive documentation systems that meet automotive industry audit requirements. Our certified processes address the demanding requirements of modern vehicles where electrical system failures can impact safety and performance.
Aerospace & Military Compliance
IPC/WHMA-A-620 Class 3 certification establishes the highest reliability standards for wire harness assembly, particularly critical for aerospace and military applications where failure is not acceptable. AS50881 Enhanced Electrical Wiring Interconnection Systems (EWIS) standards govern aerospace applications, specifying fire-resistant materials, reduced weight requirements, and enhanced durability under extreme environmental conditions with complete socket and plug reliability.
Environmental & Safety Certifications
ISO 9001:2015 quality management certification provides the foundation for consistent manufacturing excellence across all product lines. RoHS compliance ensures environmental responsibility through elimination of hazardous substances, while UL and CSA certifications validate safety performance for North American market applications including car or truck installations.
How does OurPCB’s Manufacturing Process Ensure Quality?
OurPCB utilizes automated assembly lines with robotic placement systems achieving ±0.1 mm positioning accuracy for IDC ribbon connector installation processes. Automated Optical Inspection (AOI) systems perform 100% visual verification of conductor alignment, insulation integrity, and connector seating quality. Contact resistance testing using 4-wire Kelvin measurement validates electrical continuity with specifications below 15mΩ for signal applications requiring precise connections.
Advanced Testing Protocols
- HiPot testing at 650V AC for 1 minute ensuring insulation integrity and safety compliance
- Vibration testing at 55Hz for 6 hours per axis according to MIL-STD-810 for mechanical reliability
- Salt spray testing for 96 hours validating corrosion resistance in harsh environments
- Thermal shock cycling from -55 °C to +125 °C for 1000 cycles ensuring long-term availability
Quality Validation Documentation
- Complete material traceability with UL certification numbers for all wire and cable components
- Statistical Process Control (SPC) charts for critical parameters including the number of conductors and spacing
- Certificate of Compliance (CoC) for military and aerospace applications with detailed test results
- Test data packages including contact resistance and insulation measurements for quality assurance
More Custom Cable Assembly Manufacturing Services
Advanced EMI/RFI Shielding
OurPCB provides comprehensive electromagnetic interference (EMI) and radio frequency interference (RFI) shielding solutions integrated directly into flat ribbon cable assemblies for sensitive applications. Our shielding options include custom copper mesh wrapping, ferrite core integration, and conductive polymer coatings for applications requiring FCC Class B compliance with superior performance. Shielding effectiveness testing validates attenuation performance from 10MHz to 10GHz frequency ranges, ensuring optimal protection.
Shielding Configuration Options
- Copper mesh wrap with 90dB attenuation at 1GHz for high-frequency applications
- Aluminum mylar laminate for lightweight aerospace applications with low-cost implementation
- Conductive fabric overwrap for flexible installations requiring mechanical durability
- Ferrite core integration for common-mode noise suppression in sensitive circuits
Millions of business and innovators use OurPCB
Get Started with Your Custom Ribbon Cable Project Today
OurPCB eliminates the complexity and delays associated with traditional ribbon cable manufacturers through our integrated manufacturing approach and rapid prototyping capabilities. Our engineering team provides immediate design consultation to optimize your custom ribbon cable specifications for manufacturing efficiency and cost reduction while ensuring complete compatibility with your PCB requirements.
Contact our technical specialists today to discuss your custom cable assembly needs and receive a detailed quote with projected timelines. Visit our custom cable design center to experience the advantage of single-source accountability for both PCB manufacturing and ribbon cable assembly with guaranteed quality standards.
Technical Capabilities
OurPCB’s automated manufacturing facility features state-of-the-art equipment capable of processing ribbon cable assemblies with conductor counts from 4 to 80 positions and custom lengths up to 2 meters for various application requirements. Our laser cutting systems achieve ±0.01 mm precision on conductors as fine as 40AWG with automated stripping that maintains consistent insulation removal without conductor damage for optimal performance.
Environmental compliance testing includes RoHS verification, REACH regulation adherence, and conflict mineral reporting for global market compatibility with complete availability tracking. Our quality management system maintains complete material traceability with supplier certifications for all ribbon cable materials, connectors, and insulation components while monitoring critical parameters including conductor spacing, insulation thickness, and connector insertion force to ensure consistent manufacturing quality across all production volumes.
Capabilities & Services
- Wire Gauge: 40AWG-120mm²
- Production Capacity: 10,000 pieces/hour
- Wire Cutting Service
- Wire Stripping Service
- Wire Marking Service
- Label Types
- Wire Ends Treatment
Custom Wire/Cable Service:
- Wire/Cable types
- Wire gauge
- Wire/Cable length
- Insulation/Jacket color
- Core numbers etc.
Custom Cable Assembly Capacities:
All kinds of cable assemblies including
- Electrical cable assembly
- Coaxial cable assembly
- Multi-core cable assembly
- Connector to board cable assembly
- Automobile communication cable assembly
- Power transmission cable assembly
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Reach us at
[email protected]
24 hours online
+86-199-30589219
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Custom Ribbon Cables FAQs
What is the minimum order quantity for custom ribbon cable prototypes?
OurPCB accepts single-unit prototype orders with 24-48 hour delivery timelines, enabling rapid design validation without minimum quantity restrictions. Volume production orders benefit from optimized pricing structures starting at 10 units with progressive cost reductions for quantities exceeding 500 assemblies.
How do you ensure ribbon cable quality during high-volume production?
Our automated assembly systems include real-time Statistical Process Control (SPC) monitoring of critical parameters including conductor spacing, connector insertion force, and contact resistance measurements. Every assembly undergoes automated optical inspection with 99.97% defect detection capability, followed by electrical continuity testing and environmental stress validation according to IPC/WHMA-A-620 workmanship standards.
Can you integrate ribbon cable assemblies with existing PCB designs?
Our engineering team provides comprehensive design review services to optimize ribbon cable integration with your existing PCB layouts, including connector placement recommendations, routing optimization, and signal integrity analysis. We accommodate both IDC connector modifications and custom cable configurations to ensure seamless integration without PCB redesign requirements.
