Marine Wire Harness Manufacturing
Among specialized wiring harness suppliers, OurPCB is a premier marine wire harness manufacturer. OurPCB makes full assemblies that work extraordinarily well with marine electronics because we meet ABYC standards and CFR Title 33 regulations for saltwater spaces. Marine electrical failures cause major safety issues and really expensive repairs.
On the other side of things, standard automotive harnesses give up pretty quickly from saltwater corrosion and vibration. We keep assembly standards with resilient materials like tinned copper conductors to stop electrical failures from happening.
What is Marine Wire Harness Manufacturing?

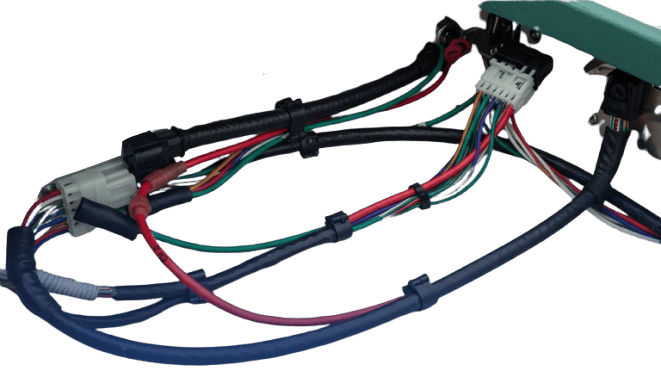

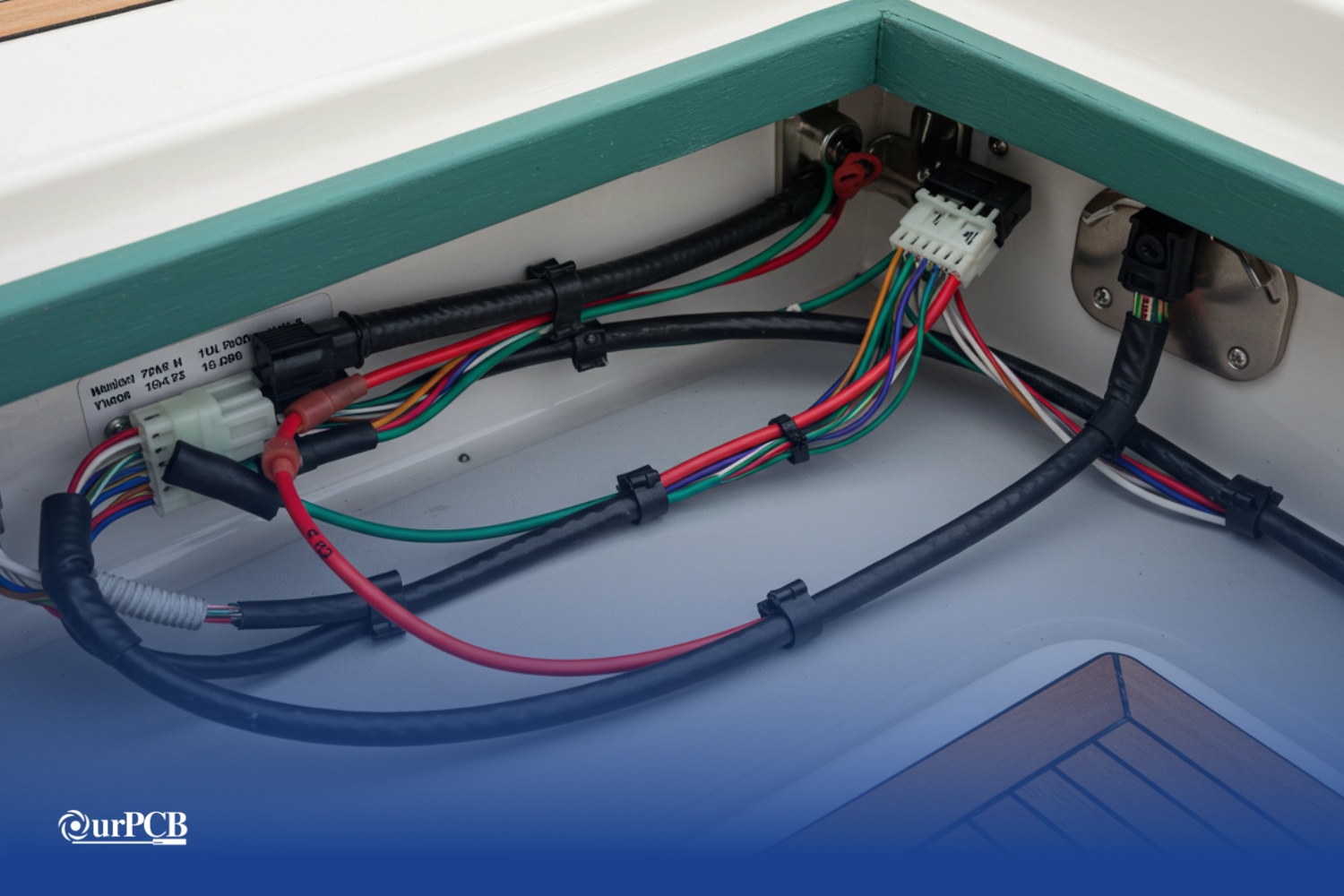

Marine wire harness manufacturing is the production of wire harnesses that are made to handle saltwater, vibration, and intense temperature changes around boats. They package a bunch of different electrical wires with protective materials. These can be corrugated tubes, braided sleeves, and more. A wiring harness for boat applications sends electrical signals and power throughout vessel systems. It does this while protecting connections from corrosion, moisture ingress, and stress.
Technical Requirements
Marine wire harness designs need a minimum of 16 AWG tinned copper conductors with stranded construction for flexibility and corrosion resistance. All wires must meet a 50V DC minimum rating with a standard 600V voltage rating and 105 °C insulation for continuous operation. Engine compartment applications require 75 °C minimum temperature rating with oil resistance and flame-retardant properties meeting marine fire safety specifications.
Regulatory Compliance Standards
Professional wire harness manufacturing follows IPC-620WHMA assembly standards, ensuring consistent quality and reliability. Assemblies must comply with ABYC standards and mandatory CFR Title 33 regulations, including proper wire identification through color coding and voltage drop limitations of 3% for essential circuits and 10% for general purpose applications.
The Benefits of Marine Wire Harness Manufacturing
Marine wire harness manufacturing delivers critical advantages for vessel electrical systems by providing superior environmental protection, regulatory compliance, installation efficiency, and long-term reliability.
Superior Environmental Protection
- Universal boat wiring harness designs resist saltwater corrosion through tinned copper conductors and specialized thermoplastic insulation materials
- IP68-rated connector sealing prevents moisture ingress that causes short circuits and component failures
ABYC Standards Compliance and Safety
- Full compliance with CFR Title 33 mandatory marine electrical regulations ensures legal operation and insurance coverage
- Flame-retardant materials and proper circuit protection reduce electrical fire risks compared to standard automotive harnesses
Reduced Installation Time and Costs
- Pre-assembled boat wire harness solutions decrease installation time compared to individual wire ends in marine applications
- Custom routing eliminates wire management challenges in tight marine compartments and reduces labor costs
Enhanced System Reliability
- Professional assembly using IPC-620WHMA standards ensures consistent connection quality and dependable performance
- Comprehensive testing including hydrostatic and megger verification guarantees optimal performance under marine operating conditions
Why Choose OurPCB for Marine Wire Harness Manufacturing?
OurPCB combines advanced PCB manufacturing expertise with specialized marine wire harness capability delivering fully integrated electrical solutions. Our ISO 9001-certified facility maintains stringent quality control processes and employs marine-specific testing equipment, including hydrostatic chambers and megger insulation testers.
Advanced Testing and Quality Assurance
- Hydrostatic testing verifies pressure resistance for underwater marine applications and bulkhead penetrator assemblies
- Megger insulation testing ensures electrical isolation integrity exceeding marine safety requirements for harsh environments
Comprehensive Marine Standards Compliance
- Full ABYC standards compliance with CFR Title 33 regulatory documentation for legal vessel operation
- UL marine component certifications and SAE automotive standards adaptation for hybrid marine-automotive applications
Advanced Testing and Quality Assurance
- Hydrostatic testing verifies pressure resistance for underwater marine applications and bulkhead penetrator assemblies
- Megger insulation testing ensures electrical isolation integrity exceeding marine safety requirements for harsh environments
Comprehensive Marine Standards Compliance
- Full ABYC standards compliance with CFR Title 33 regulatory documentation for legal vessel operation
- UL marine component certifications and SAE automotive standards adaptation for hybrid marine-automotive applications
Custom Engineering and Design Capabilities
- CAD-based 3D modeling integrates harnesses with vessel layouts and marine electronics systems including NMEA 2000 networks
- On-site marine application analysis and custom connector solutions for specialized boat electrical requirements
State-of-the-Art Manufacturing and Services
- Complete marine electronics assembly combining custom PCBs with wire harness solutions for navigation and control systems
- Contract manufacturing services eliminate multiple vendor coordination while ensuring compatibility between electronic assemblies and wiring
Marine Wire Harness Technical Specifications
| Specification | Standard Requirement | Engine Compartment |
|---|---|---|
| Wire Gauge | Minimum 16 AWG | Minimum 16 AWG |
| Voltage Rating | 600V standard | 600V standard |
| Temperature Rating | 105 °C continuous | 75 °C minimum |
| Insulation Type | UV-resistant thermoplastic | Oil-resistant compound |
| Conductor Type | Tinned copper stranded | Tinned copper stranded |
| Voltage Drop | 10% general / 3% essential | 3% essential circuits |
Construction Materials and Manufacturing Process
High-quality wire harnesses utilize specialized materials including corrugated tubes for abrasion protection, braided sleeves for electromagnetic shielding, and silica sleeves for high-temperature applications. Twisted pair construction maintains signal integrity for communication systems while duplex and triplex cables with outer jackets provide additional protection.
Advanced manufacturing techniques include molding processes for custom connector solutions and multi-conductor cable assemblies for complex marine electrical systems.
Testing and Documentation
Each final product receives comprehensive testing including electrical continuity verification, insulation resistance measurement, and environmental exposure validation. Documentation packages include assembly drawings, parts lists, wiring diagrams, test certificates, and certificates of conformance meeting IPC-620WHMA professional standards for top-quality marine applications.

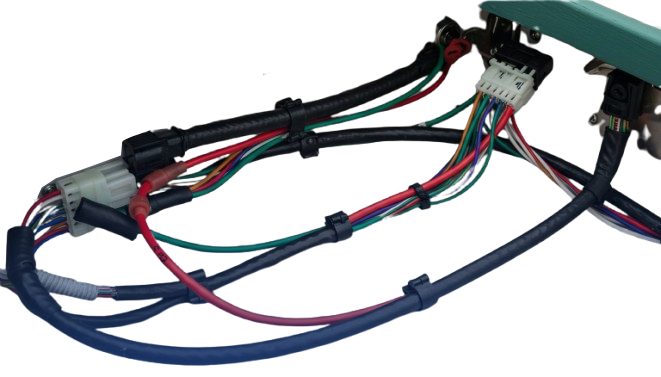

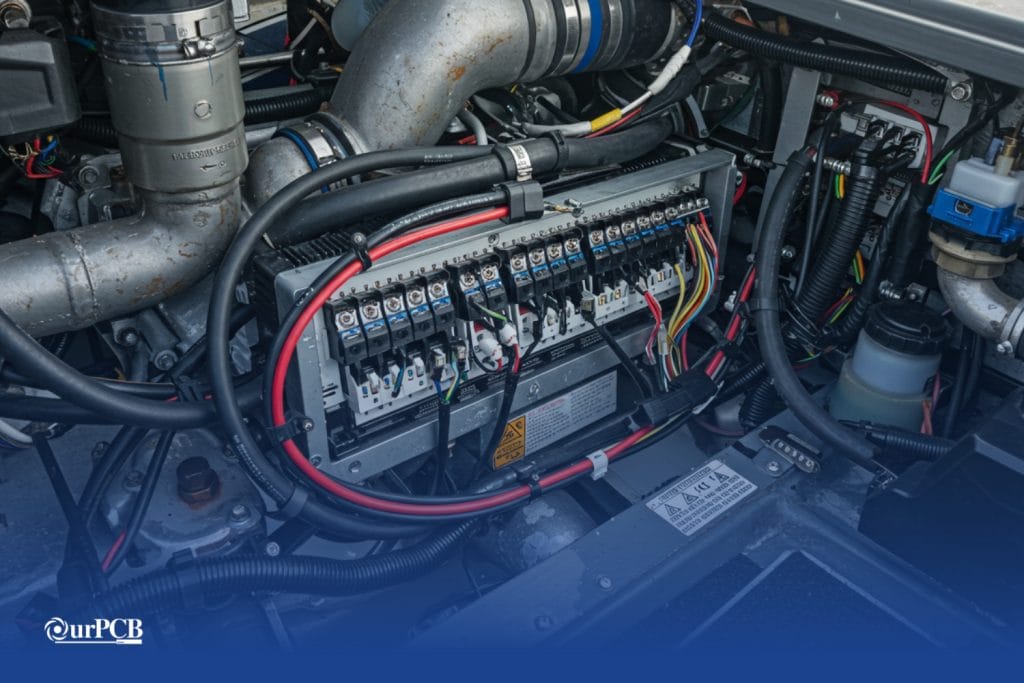

Defense and Submarine Applications
OurPCB specializes in marine wire harness solutions for defense industry applications including naval vessels, submarines, and military marine equipment. Submarine applications require extreme pressure resistance with specialized materials and super-absorbent polymers for pressure control in deep-water environments. Our harnesses meet stringent military specifications for vibration resistance, electromagnetic compatibility, and performance in combat conditions.
Military-Grade Specifications
- Pressure ratings up to 200 PSI for submarine bulkhead penetrators and underwater tethering systems
- Enhanced electromagnetic shielding for radar and communication systems in military vessels
- Cutting-edge connector solutions for weapons systems, navigation equipment, and communication arrays
Underwater Tethering Systems
- Straight umbilical designs for ROV and AUV applications requiring continuous underwater operation
- Molded junctions and multiple leg configurations for complex underwater sensor networks
- Custom elastomers and specialized urethanes for extended saltwater exposure and pressure cycling
Marine Electronics Integration and Compatibility
Marine electronics integration requires specialized knowledge of NMEA 2000 networks, CANbus protocols, and marine-specific signal requirements. Wire harness assembly accommodates differential signaling for GPS navigation systems, radar displays, and fish finder equipment while maintaining proper impedance control. Marine communication systems including VHF radios and satellite communication require shielded cables with proper grounding to prevent interference.
Engine and Power Systems
- CAN network compatibility with proper termination resistors and twisted pair construction for engine control modules
- Marine autopilot systems requiring precise signal integrity for compass and GPS inputs with engine noise isolation
- Innovative wiring designs integrate with marine battery management systems, inverters, and shore power connections
Navigation and Communication
- Navigation light circuits with proper load balancing and voltage regulation ensuring LED compatibility and Coast Guard compliance
- Panel production interfaces for solar integration requiring DC combiner box connections and charge controller interfaces with surge protection
- Aftermarket accessories and RV applications with specialized connectors for continuous outdoor salt spray exposure
Millions of business and innovators use OurPCB
Technical Capabilities
OurPCB’s marine wire harness manufacturing facility features specialized equipment including hydrostatic test chambers rated to 200 PSI, automated wire cutting and stripping systems with 0.1mm precision, and ultrasonic welding equipment for marine connector assembly. Our quality control laboratory maintains calibrated megger testers, salt spray chambers, and vibration test equipment meeting ASTM standards for marine applications serving various industries including defense, commercial, and recreational boating.
Capabilities & Services
- Wire Gauge: 40AWG-120mm²
- Production Capacity: 10,000 pieces/hour
- Wire Cutting Service
- Wire Stripping Service
- Wire Marking Service
- Label Types
- Wire Ends Treatment
Custom Wire/Cable Service:
- Wire/Cable types
- Wire gauge
- Wire/Cable length
- Insulation/Jacket color
- Core numbers etc.
Custom Cable Assembly Capacities:
All kinds of cable assemblies including
- Electrical cable assembly
- Coaxial cable assembly
- Multi-core cable assembly
- Connector to board cable assembly
- Automobile communication cable assembly
- Power transmission cable assembly
Get Started with Your Marine Wire Harness Project
OurPCB delivers industry-leading marine wire harness manufacturing solutions combining specialized marine expertise with comprehensive PCB assembly capabilities. Our ABYC-compliant high-quality wire harnesses ensure your vessel meets all safety regulations while providing superior reliability in harsh marine environments with competitive pricing and exceptional customer service.
Get in touch with our marine electronics specialists today to discuss your custom wire harness requirements and receive a detailed quote for your marine project. We’re ready to deliver the precision-engineered electrical solutions your marine application demands.
More Custom Wire Harness Manufacturing Services
Our custom wire harness manufacturing services cover a wide range of industries and specialized needs. From automotive and truck harnesses built for reliability under demanding conditions to marine solutions designed to withstand harsh environments, we ensure durability and precision. We also offer OEM harness manufacturing tailored to exact specifications, as well as tractor harnesses engineered for agricultural efficiency. For projects that require flexibility, our custom wire harness solutions provide tailored configurations to meet unique applications. With expertise across multiple sectors, we deliver consistent quality, performance, and long-term dependability.
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Reach us at
[email protected]
24 hours online
+86-199-30589219
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Marine Wire Harness Manufacturing FAQs
What specific marine standards do your wire harnesses meet beyond basic ABYC compliance?
Our marine wire harness solutions exceed ABYC standards by incorporating SAE automotive standards adapted for marine use, UL marine component certifications, and ISO 9001 quality management compliance. We follow IPC-620WHMA professional assembly standards and provide comprehensive documentation including hydrostatic test certificates and megger insulation verification meeting Coast Guard equipment approval requirements for OEM and aftermarket applications.
How do you handle custom connector requirements for specialized marine electronics?
We manufacture custom marine connector solutions including molded cable assemblies, bulkhead penetrators, and underwater-rated connectors using specialized elastomers and marine-grade materials. Our custom connector capabilities include IP68 sealing, pressure ratings up to 100 PSI, and compatibility with NMEA 2000 networks, radar systems, and marine communication equipment requiring specialized interface solutions for boater applications.
What is your typical lead time for complex marine wire harness projects?
Complex marine wire harness projects typically require 3-4 weeks including custom design, prototype development, and comprehensive testing phases with an additional 1-2 weeks for high volumes production runs. Rush orders can be accommodated in 10-14 days for critical marine applications, and we maintain expedited processes for emergency vessel repairs and seasonal marine industry requirements through our streamlined manufacturing process.
