Custom Medical Cable Assembly Manufacturer
As a trusted custom cable assembly manufacturer, we provide OEM medical cable assemblies designed to meet the stringent requirements of life-saving healthcare equipment. Our custom medical cable assemblies are essential in supporting critical systems across hospitals, surgical centers, and medical device manufacturers. We ensure all of our solutions meet regulatory standards, with a focus on quality management systems and compliance with safety requirements specific to the medical industry.

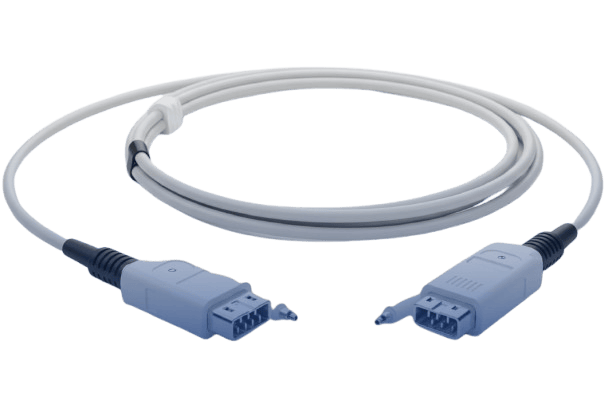

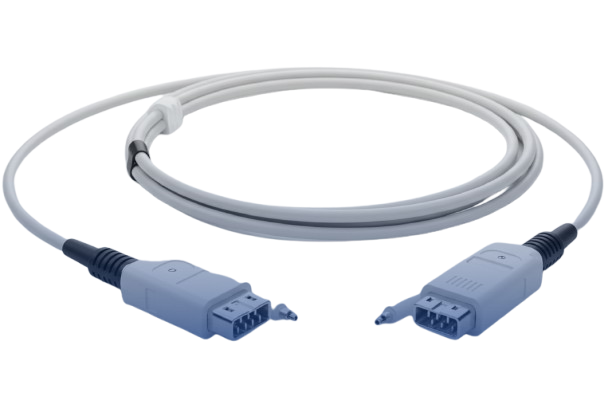

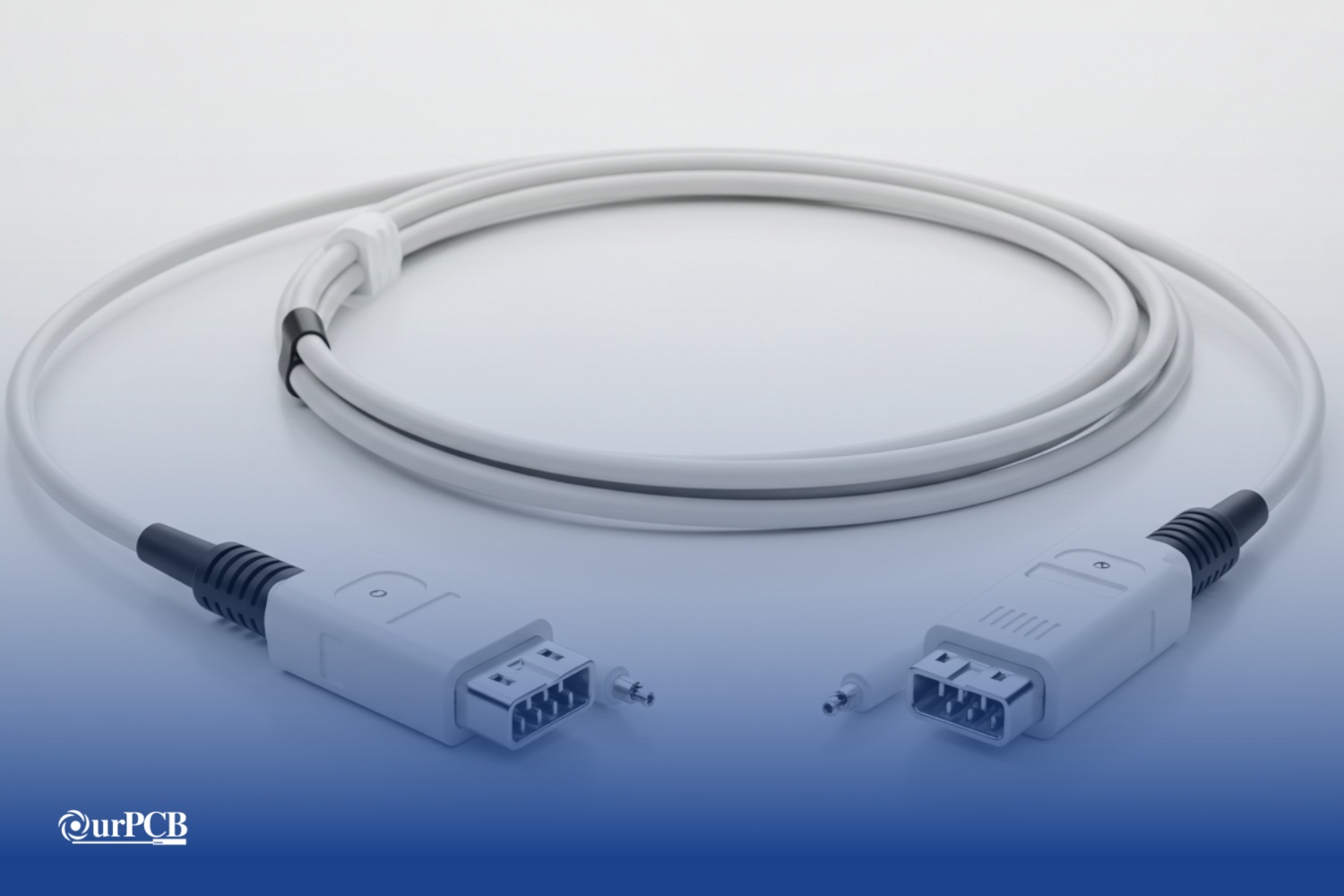

What is Medical Cable Assembly?
Medical cable assembly is made up of tons of different insulated conductors, all together with special healthcare connectors. These custom medical cables send electrical signals, power, and data between medical devices. It does this while keeping biocompatibility standards needed for patient contact. Medical cable assemblies have the latest materials like thermoplastic elastomers (TPE). This is because they can handle autoclave sterilization cycles.
Assembly Parts
- Conductor: Oxygen-free copper and silver-plated copper for optimal electrical conductivity
- Insulation: Cross-linked polyethylene and medical-grade compounds
- Shield: EMI/RFI protection using aluminum foil and tinned copper braid
- Connector: Biocompatible materials with corrosion-resistant alloy construction
Communication Protocol Support
Custom medical cable assemblies support multiple communication standards including RS-485, RS-422, RS-423, and RS-232 protocols for data transmission between patient monitors and hospital information systems. Advanced assemblies feature modular LAN interfaces, serial cable connections, and fiber optic communication links for high-speed imaging data transfer in modern healthcare facilities.
Regulatory Compliance Standards
All medical assemblies adhere to ISO 10993-1 biocompatibility standards, ensuring materials remain safe during direct patient contact. Compliance includes REACH and RoHS environmental regulations plus comprehensive insulation testing that meets IEC 60601-1 electrical and mechanical requirements.
Types of Medical Cable Assemblies We Offer
We offer a wide range of custom cable assembly solutions tailored for various medical applications, ensuring precision, reliability, and safety. Below are some of the key types of medical cable assemblies we provide:
Our patient monitoring cables are designed for precision and durability, providing reliable electrical connections to vital monitoring equipment. This includes cables for:
- ECG/EKG leads
- Pulse oximeters
- Vital signs monitoring
These cables ensure accurate data transmission for patient health monitoring.
We supply custom wiring solutions for medical imaging equipment, ensuring high-quality signal transmission for:
- Ultrasound probes
- MRI/CT scanners
- X-ray detectors
- Endoscopy equipment
Our medical imaging cable assemblies are built to withstand the demanding environment of diagnostic imaging while ensuring reliable data transfer and durability.
For critical medical applications, our life support system cable assemblies ensure safe, consistent connections. We provide harnesses for:
- Ventilators
- Infusion pumps
- Dialysis machines
These harnesses are designed to meet rigorous standards for medical safety and reliability.
Our custom medical cable assemblies are also tailored for portable and wearable devices, including:
- Portable glucose monitors
- Wearable health devices for real-time monitoring
These cables are designed for flexibility and comfort, supporting both data transmission and power delivery in compact, mobile devices.
As the demand for robotic surgery grows, we provide precision cable assemblies for robotic surgical systems, including:
- Control cables
- Data transmission cables
- Power cables for robotic arms and surgical instruments
These assemblies are engineered for high-performance, continuous motion, and reliability in complex, high-stakes surgical environments.
We offer cable bundling services to organize and secure multiple wires, enhancing protection against:
- Vibration
- Heat
- Medical fluids
Our bundling techniques use automotive-grade cable ties and IATF 16949-compliant methods, ensuring that cables withstand mechanical stress, extreme temperatures, and other challenging medical environments.
For high-speed data transfer and imaging systems, we offer fiber optic cable assemblies. These are essential for ensuring clear, uninterrupted communication in diagnostic imaging, surgical applications, and medical networks.
We provide medical cable assemblies made with high-temperature resistant materials to withstand autoclave processes and other sterilization methods. These include PVC, Teflon, and silicone for medical-grade resistance to harsh chemicals, heat, and wear.
Why Choose OurPCB for Medical Cable Assembly?
OurPCB combines advanced manufacturing capabilities with comprehensive regulatory expertise to deliver medical cable assemblies that exceed rigorous standards.
Certified Quality Management Systems
- Including ISO 13485-certified manufacturing processes ensures consistent quality through documented procedures and traceability
- FDA regulatory pathway support includes complete documentation packages for medical device submissions
Advanced Testing and Validation
- Comprehensive insulation resistance testing verifies electrical safety parameters exceed IEC 60601–1 requirements
- Mechanical stress testing validates assembly performance under extreme flexing and environmental conditions
Specialized Medical Industry Expertise
- Class III medical device experience includes life-critical applications requiring the highest reliability standards
- Biocompatibility testing protocols ensure materials meet ISO 10993-1 standards for patient contact applications
Custom Engineering Capabilities
- The application-specific custom design addresses unique environmental requirements and performance specifications
- Advanced materials’ selection includes thermoplastic elastomers, fluorinated polymers, and medical-grade compounds

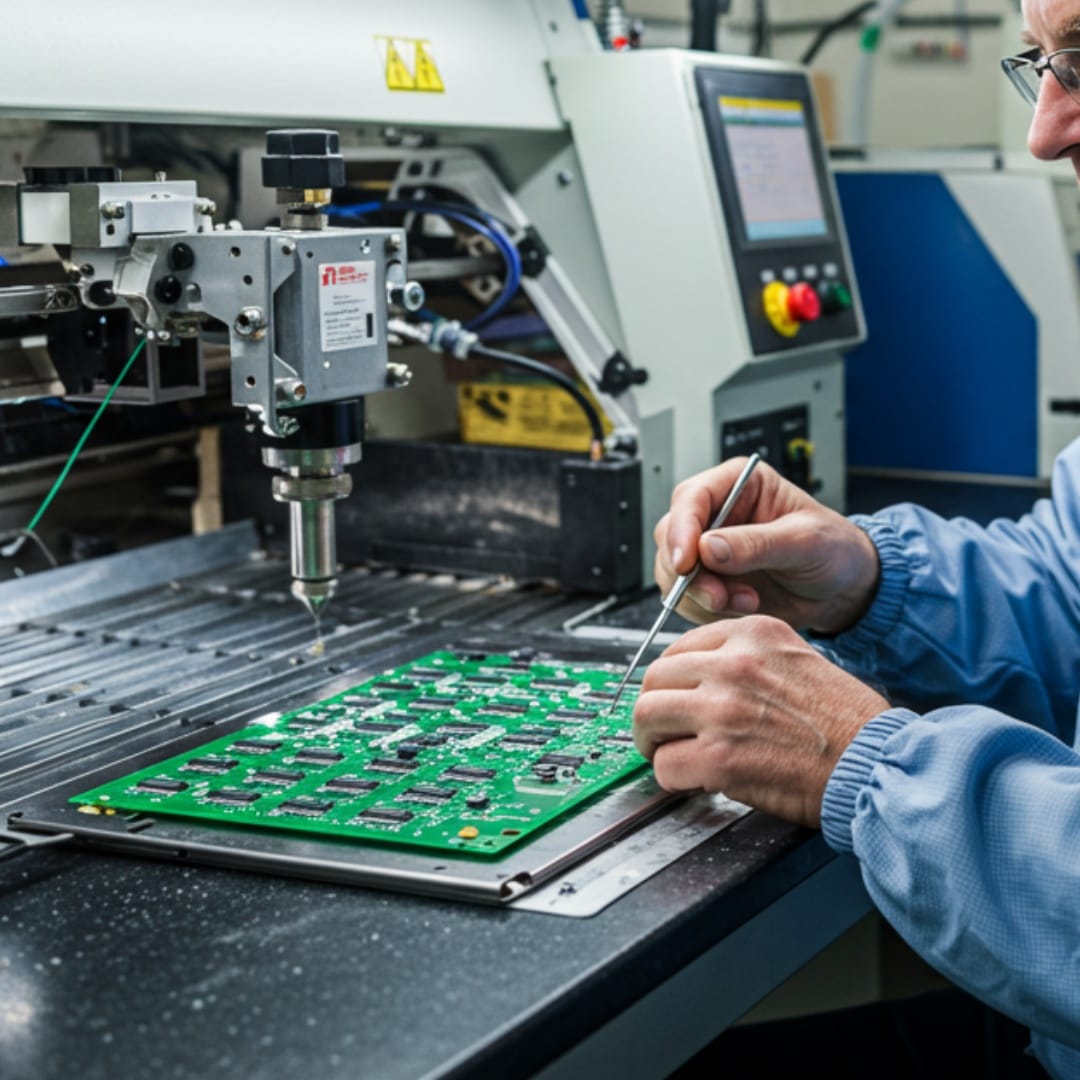

Medical Cable Assembly Testing Protocols
Medical cable assembly testing protocols validate electrical safety, mechanical durability, and biocompatibility through standardized procedures. Insulation resistance testing measures electrical isolation between conductors and ensures values exceed 10 megohms at 500 VDC as required by IEC 60601–1 standards to meet the stringent requirements of the medical field.
Electrical Safety Testing
- Dielectric Withstand Testing: High voltage stress application to verify insulation integrity
- Continuity Testing: Conductor path verification ensuring proper electrical connections
- Insulation Resistance: Measurement of electrical isolation between conductors and shields
Mechanical Durability Validation
- Flex Life Testing: Repetitive bending cycles exceeding 100,000 iterations
- Connector Retention: Pull force testing to validate connector attachment strength
- Temperature Cycling: Performance verification from -40 °C to +85 °C operating ranges
Biocompatibility Assessment
Biocompatibility evaluation follows ISO 10993-1 testing protocols including cytotoxicity assessment, sensitization studies, and irritation testing for materials in direct patient contact. Chemical resistance testing exposes cable assemblies to sterilization agents, cleaning solutions, and bodily fluids to verify material compatibility and prevent infection.
Medical Device Applications
Medical device cables enable critical functionality across diverse healthcare applications requiring specialized performance characteristics and regulatory compliance for various types of medical equipment.
Patient Monitoring Systems
| Application | Cable Requirements | Key Features |
|---|---|---|
| ECG/EKG Monitors | Biocompatible leads, EMI shielding | Patient contact safety, signal clarity |
| Pulse Oximetry | Flexible cables, autoclave resistance | Sensor connectivity, sterilization compatibility |
| Blood Pressure Monitors | Pressure-resistant harness | Durability under mechanical stress |
Diagnostic Equipment and Imaging
- CT Scanners: High-frequency imaging cable assemblies with EMI protection for image clarity
- MRI Machines: Non-magnetic cable assemblies preventing imaging interference
- Ultrasound Imaging: Flexible probe cables supporting real-time image transmission
- Endoscopy: Specialized cables for internal visualization with illumination features
Life Support and Surgical Equipment
- Ventilators: Critical airway pressure monitoring cables with redundant safety features
- Defibrillators: High-voltage capable insulation preventing electrical hazards during emergency procedures
- Dialysis Machines: Chemical-resistant cables withstanding exposure to dialysis solutions
- Robotic Surgical Systems: Precision control cables enabling minimally invasive procedures

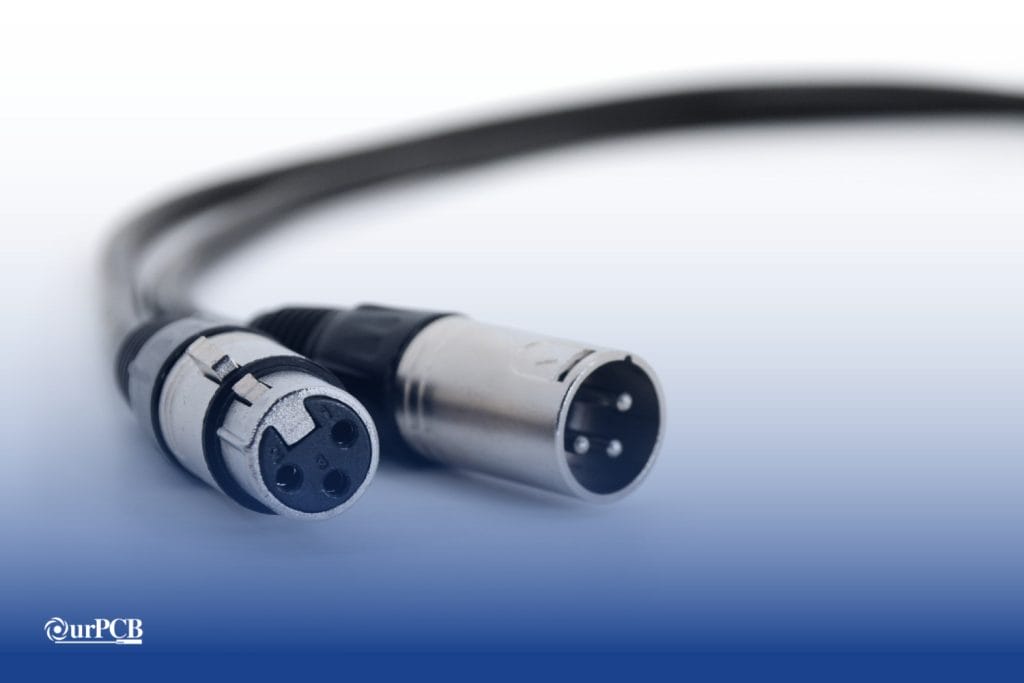

Advanced Connector Technologies
Advanced connector technologies enable reliable interconnect solutions between medical devices while maintaining biocompatibility and sterilization resistance. Medical-grade connector types include specialized designs for specific healthcare applications to ensure functionality and reliability.
Standard Medical Connectors
- BNC/TNC Connectors: RF applications in diagnostic equipment and patient monitoring
- DIN 1.02/2.3: Precision connections for high-frequency medical applications
- D-Sub Configurations: Power and signal combination for equipment interfaces
Specialized Healthcare Connectors
- Non-Magnetic Connectors: MRI-compatible materials preventing imaging interference
- Autoclave-Resistant Designs: Withstanding 134 °C sterilization cycles repeatedly
- Quick-Disconnect Systems: Enabling rapid equipment setup in emergency situations
Fiber Optic Connectivity
Fiber optic connectors including LC, FC, ST, MU, MTP, and MT-RJ types support high-speed data transmission in modern medical equipment. These connectors feature medical-grade polishing and specialized ferrule components that maintain signal integrity during repetitive flexing in robotic surgical systems used in medical applications. Additionally, custom ribbon cable assemblies play a crucial role in these devices by providing reliable, high-performance interconnects for power and signal distribution, supporting the overall functionality and efficiency of medical technologies.
Advanced Materials and Specifications
Advanced materials engineering enables medical cables to withstand harsh clinical environments while maintaining electrical and mechanical performance for a broad range of medical devices.
Jacketing Materials
- Thermoplastic Elastomers (TPE): Flexibility and chemical resistance for handheld devices
- Fluorinated Elastomers (FEP): Superior temperature resistance and low-friction surfaces
- Medical-Grade PVC: Excellent electrical insulation with biocompatibility compliance
- Polyethylene: Enhanced chemical resistance for exposure to cleaning agents
Specialized Material Properties
| Material | Temperature Range | Chemical Resistance | Biocompatibility |
|---|---|---|---|
| TPE | -40 °C to +105 °C | Excellent | ISO 10993-1 |
| FEP | -200 °C to +200 °C | Superior | USP Class VI |
| Medical PVC | -40 °C to +85 °C | Good | ISO 10993-1 |
Conductor Specifications
Conductor specifications include oxygen-free copper for optimal electrical conductivity and silver-plated copper for enhanced corrosion resistance in humid environments. Fiber optic cores utilize medical-grade glass fibers with specialized coatings that maintain signal integrity during repetitive flexing while supporting size and weight requirements for portable medical instrumentation.
More Custom Cable Assembly Manufacturing Services
Millions of business and innovators use OurPCB
Technical Capabilities
Our manufacturing facility features advanced cable assembly equipment including automated wire processing systems, precision connector insertion machines, and comprehensive electrical testing stations. Environmental testing capabilities include temperature cycling chambers, humidity exposure systems, and chemical resistance evaluation equipment that validates cable performance under clinical conditions.
Quality control systems incorporate automated optical inspection (AOI), in-circuit testing (ICT), and functional verification procedures that ensure every assembly meets specified performance parameters. Our cable assembly manufacturer documentation systems provide comprehensive test reports, material certifications, and manufacturing solutions required for medical device regulatory submissions.
Capabilities & Services
- Wire Gauge: 40AWG-120mm²
- Production Capacity: 10,000 pieces/hour
- Wire Cutting Service
- Wire Stripping Service
- Wire Marking Service
- Label Types
- Wire Ends Treatment
Custom Wire/Cable Service:
- Wire/Cable types
- Wire gauge
- Wire/Cable length
- Insulation/Jacket color
- Core numbers etc.
Custom Cable Assembly Capacities:
All kinds of cable assemblies including
- Electrical cable assembly
- Coaxial cable assembly
- Multi-core cable assembly
- Connector to board cable assembly
- Automobile communication cable assembly
- Power transmission cable assembly
Get Started with Professional Medical Cable Assembly Services
OurPCB’s medical cable assembly services combine technical expertise with regulatory compliance to deliver connectivity solutions that meet the demanding requirements of healthcare applications. Our ISO 13485 certified manufacturing processes ensure consistent quality while our comprehensive testing protocols validate electrical safety and mechanical durability for life-critical medical devices.
Contact our engineering team today to discuss your range of medical device cable requirements and receive a detailed quotation for your project. We offer a variety of custom medical cable assemblies with complete support from initial design consultation through final product delivery, ensuring your medical devices receive the right cable assemblies that meet all applicable safety standards and performance specifications.
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Reach us at
[email protected]
24 hours online
+86-199-30589219
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Custom Medical Cable Assembly Manufacturer FAQs
What sterilization methods are compatible with your medical cable assemblies?
Our medical cable assemblies withstand multiple sterilization methods including autoclave steam sterilization at 134 °C for 18 minutes, ethylene oxide (EtO) gas sterilization, and gamma radiation sterilization up to 25 kGy. Material selection ensures compatibility with hospital sterilization protocols while maintaining electrical and mechanical properties throughout repeated sterilization cycles for cables used in medical environments.
How do you ensure electromagnetic compatibility (EMC) for medical cable assemblies?
We implement comprehensive EMC design strategies including twisted pair conductor configurations, multi-layer shielding with aluminum foil and tinned copper braid, and proper grounding techniques. Testing validates electromagnetic emissions compliance with IEC 60601-1-2 standards and immunity to electromagnetic interference from medical equipment operating in hospital environments using coaxial and specialized cable configurations.
What documentation do you provide for regulatory submissions?
Our documentation package includes material biocompatibility certificates, electrical safety test reports, mechanical performance validation data, and manufacturing quality records. We provide FDA 510(k) submission support documentation, ISO 13485 quality management certificates, and complete traceability records required for medical device regulatory approval processes including harness assemblies and wire harness specifications.
What are the Benefits of Medical Cable Assembly?
Medical cable assemblies deliver essential performance advantages that directly impact patient care and device reliability in healthcare industry environments.
Enhanced Patient Safety Assurance
- Biocompatible materials prevent adverse tissue reactions during direct patient contact applications
- Comprehensive insulation testing eliminates electrical leakage risks that could endanger patient wellbeing
Regulatory Compliance Guarantee
- ISO certification ensures quality management systems meet international medical device standards
- IEC 60601-1 compliance provides mandatory safety verification for medical electrical equipment market entry
Superior Signal Integrity Performance
- EMI/RFI shielding maintains accurate data transmission in electromagnetically noisy hospital environments
- Flex life testing validates mechanical durability through thousands of bend cycles without signal degradation
Cost-Effective Customization Solutions
- Application-specific cable design optimization reduces total cost of ownership compared to generic alternatives
- Modular connector systems enable easy maintenance and component replacement in critical care settings
