Low Volume PCBs and Assembly Manufacturer
At OurPCB, we specialize in low-volume PCBs and assembly, offering high-quality manufacturing services for small batch production. Whether you need prototypes or limited runs, our experienced team ensures precise assembly and quick turnaround times, meeting your unique specifications. We serve a wide range of industries, from consumer electronics to medical devices, providing cost-effective solutions without compromising performance.
Need Low-volume PCBs and Assembly Services?
As a leading PCBA manufacturer, we at OurPCB are ready to assist you, with services ranging from only 25 pieces to 5,000 units. OurPCB is a group of experienced professionals offering state-of-the-art PCB assembly services. With many satisfied customers worldwide, particularly in the USA, you can rely on OurPCB to provide exceptional quality and service.
PCB Manufacturing Process
Benefits of Low-Volume PCB Assembly
Low-volume PCB assembly introduces several benefits to the electronics business environment, including:
Mass or high-volume production of a new, untested design or circuit upgrade can be buggy. Such products are likely to have negative feedback from the market, resulting in expensive recalls and market share losses that will affect cash flow in the future.
Low-volume PCB production might seem expensive at first, but it’s a cost-effective part of the RnD process that enables prototyping and fine-tuning. This ensures that the product that ends up in the market is the best possible version.
Low-volume production is synonymous with prototyping and falls in the same category as quick-turn PCB manufacturing. Therefore, you’ll get your PCBs in 1 to 7 days, depending on the board’s complexity and the exact number of pieces.
This quick turnaround helps you fine-tune the product quickly and launch the final device in the market within a reasonable timeline.
With the quick turnaround and cost-effectiveness, low-volume production makes it possible to alter the design and change electronic component specifications quickly to improve performance. You can even do tweaks in several prototyping iterations/versions because the cost is manageable. When understanding PCB components, this flexibility is key to refining the circuit design with minimal risk.
Each PCB in the low-volume assembly batch undergoes various checks and rigorous tests to produce the highest-quality product. And since they are few, we’ll be able to commit more resources (time and components) to each piece, which will have a positive impact on quality.
Since we’ll be able to commit more resources to low-volume assembly, the resulting high-quality PCBs will be more reliable. The risk of making mistakes will be lower than when handling large orders in the same time frame.
How Much is The Price for Low Volume PCB Manufacturing?
For low volume PCB manufacturing, assembling a square inch of PCB can cost between $0.02 to $0.05. However, this cost is not fixed and can vary based on several factors. The factors that determine the actual assembly cost per square inch include:
- Necessary assembly labor
- Prevailing labor rates
- Assembly time
- Overhead manufacturing expenses
- Design complexity of the board
Check out our PCB cost estimator page to learn more.
For low volume PCB manufacturing, assembling a square inch of PCB can cost between $0.02 to $0.05. However, this cost is not fixed and can vary based on several factors. The factors that determine the actual assembly cost per square inch include:
- Necessary assembly labor
- Prevailing labor rates
- Assembly time
- Overhead manufacturing expenses
- Design complexity of the board
Check out our PCB cost estimator page to learn more.
Our Low Volume PCB Assembly Capabilities
PCB assembly has its roots in the design process, and our capabilities begin at this point.
OurPCB offers PCB layout design services for low-volume circuit board assembly. Whether you need designs for real-time control, smart devices, or embedded systems, we optimize layouts for manufacturing, ensuring efficiency and functionality in your low-volume PCB production.
Our DFM review ensures your low-volume PCB design is production-ready. We identify potential bottlenecks and suggest improvements like signal and solder mask checks, enhancing manufacturability and minimizing delays or increased costs during low-volume PCB assembly.
Once approved, OurPCB begins fabricating your design using materials like FR4, ceramic, or aluminum. We offer single-sided, double-sided, and multilayer PCBs (up to 50 layers), perfect for complex, high-density designs, ensuring precision in your low-volume PCB manufacturing.
We source components for quick PCB assembly, stocking common parts and accessing specialized components through trusted global suppliers like Avnet and Mouser. All components are rigorously tested for authenticity, improving reliability in your low-volume PCB production and final assembly.
Conformal coating protects PCBs from moisture, dust, and temperature extremes in environments like aerospace or automotive. OurPCB applies materials such as epoxy, silicone, urethane, and acrylic, offering tailored protection for your low-volume PCB assembly in demanding conditions.
OurPCB provides IC programming services during low-volume PCB assembly, using universal headers or dedicated jigs. We customize the programming process to ensure your ICs are fully functional and meet specific requirements for your low-volume electronics production.
We conduct rigorous testing for all PCBs before assembly, including functional jig and burn-in tests. This ensures that each low-volume PCB assembly meets performance standards, particularly important for high-reliability applications in industries like aerospace and telecommunications.
OurPCB accelerates prototyping with quick-turnaround services such as CNC machining and chemical etching. We specialize in low-volume PCB prototype assembly, ensuring that each test board meets your specific requirements and speeds up product development.

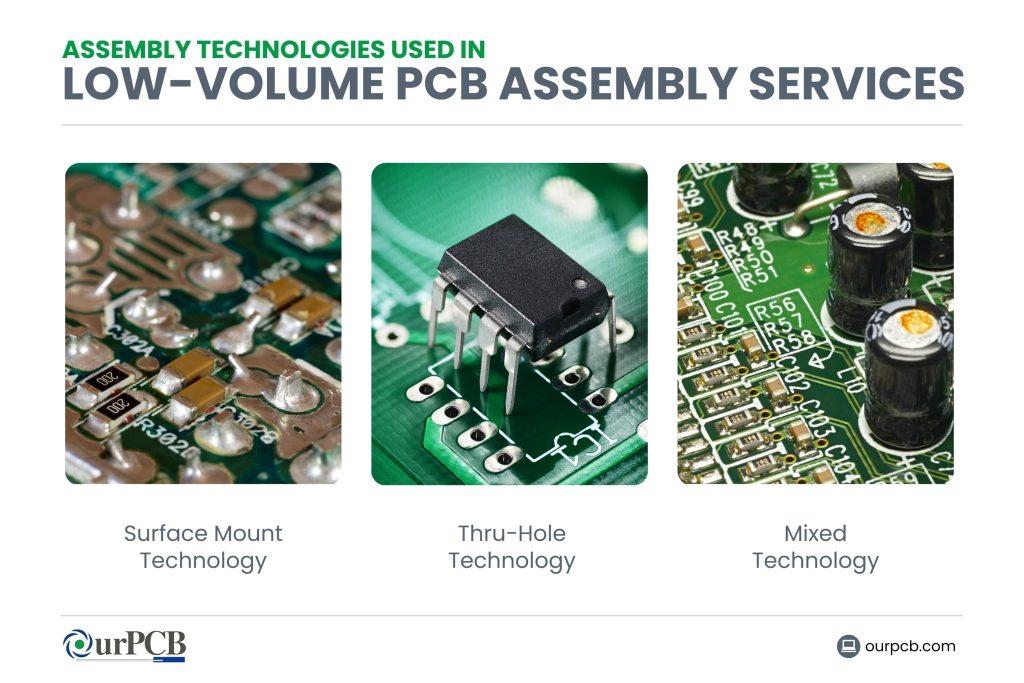

Assembly Technologies Used in Low-Volume PCB Assembly Services
- Surface Mount Technology (SMT): This technology involves mounting tiny components on the PCB surface (copper pads), which makes it possible to create miniaturized circuits.
- Thru-Hole Technology (THT): Thru-hole components are large, and this technology mounts their leads inside plated holes on the PCB to hold them firmly.
- Mixed Technology: A mixed assembly has both SMT and THT, which makes the PCB more robust because it can have the most optimal hardware, be it large or small.
Industries We Serve
- Medical instrumentation
- LED lighting
- Testing and measuring equipment
- Automotive
- Marine
- Consumer electronics
- Industrial equipment
- Aerospace
- Military
PCB Assembly Services
We handle everything from parts sourcing to final assembly, providing a hassle-free experience that ensures top-quality boards every time.
Whether you need a few prototypes or large-volume batches, our flexible assembly services adapt to your project’s scope and timeline.
Stay environmentally responsible with our compliant assembly processes, offering RoHS and lead-free options for safe, reliable builds.
No matter the complexity, we can assemble boards of all configurations—single-layer, multi-layer, or a mix—to match your exact specifications.
From one-off prototypes to bulk orders, we accommodate projects of all sizes without compromising on quality or turnaround time.
Join our growing community of satisfied clients who rely on our dependable assembly expertise and dedicated customer support.
Millions of business and innovators use OurPCB

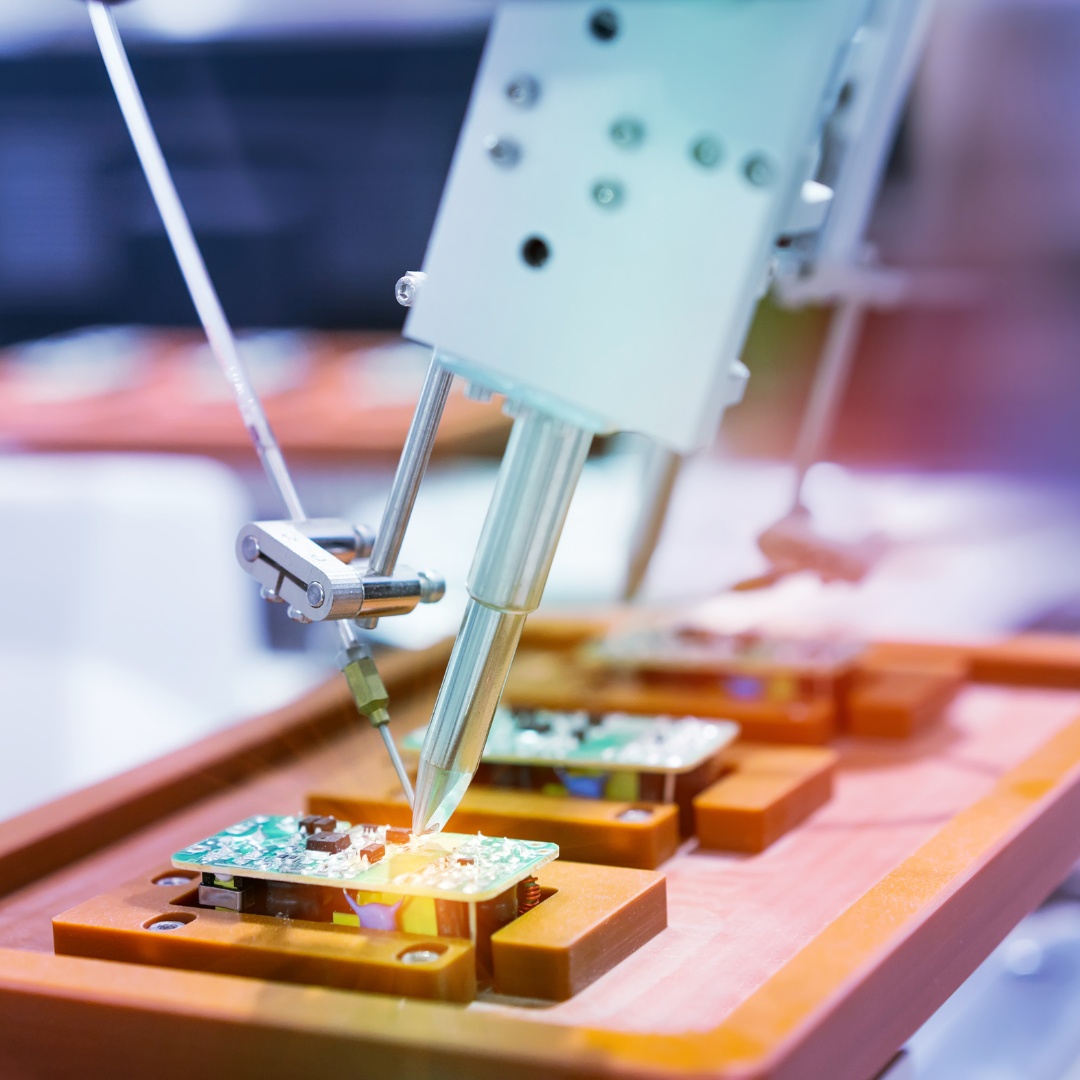

Technical Capabilities
Capabilities & Services
- One-stop PCBA Services (PCB Manufacturing + Components Sourcing + Assembly)
- SMT Assembly + THT Assembly, Single/double-sided Assembly Mixed PCB Assembly
- BGA Rework
- 60,000 Chips/Hour
- Down to 01005/0210 Size
- Accuracy<±40μm
- Min. QFN Pin Width/Space: 0.15mm/0.25mm
- Min. BGA Diameter/Space: 0.2mm/0.35mm
- Rigid, Flex, HDI, & High-speed Power Boards
- Up to 64 Layers
- 60GHz High Frequencies
- Min. Trace Width/Spacing: 1.8mil/1.8mil
- AOI, X-ray, ICT & FCT Testing
- Controlled Impedance
- ISO 9001, ISO 13485, ISO 14001, IATF 16949, IPC-A-610, UL Certified
- Automotive, Medical, & Military-grade PCBA Manufacturing
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Reach us at
[email protected]
24 hours online
+86-199-30589219
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Low Volume PCBs and Assembly Manufacturer FAQs
What component sizes can be handled in low-volume PCB assemblies?
We can handle all component sizes, including the fine-pitch type (as small as 8 mils), passive parts like the 0201 (20×10 mils), BGA, and all chip carriers (leadless and leaded).
What types of solder are used in low-volume PCB assembly?
We can use leaded or lead-free solder, depending on your requirements. For instance, if you want to make consumer electronics, we use lead-free solder for RoHS compliance. But for applications that require high reliability, such as in military electronic devices, leaded solder might be better.
How Do I Get Started With a Low-Volume PCBs?
The process starts with a consultation where you provide your project details, either by submitting design files or a full project description. If you supply design files, we can give you an instant online quote. If you’re just starting with a project description, we’ll work with you to refine the requirements, then provide a quote for the entire project along with expected delivery timelines. After that, the manufacturing process begins, and we’ll keep you updated on the progress, including when prototypes and final boards are ready for shipping. To get started, simply contact us with your project details or design documents (Gerber files and BOM), and we’ll provide you with an instant PCB quotation for your low-volume assembly needs.
What Other Services Are Available for PCB Assembly?
- PCB Assembly Services: Comprehensive solutions for assembling printed circuit boards.
- Quick Turn PCB Assembly: Fast and efficient PCB assembly to meet tight deadlines.
- High Volume PCB Assembly: Scalable solutions for large-scale PCB production.
- Flexible PCB Manufacturing: Specialized in manufacturing flexible PCBs for diverse applications.
- Turnkey PCB Assembly: End-to-end services covering all aspects of PCB production.
- PCB Design Services: Expert design services to bring your PCB concepts to life.
- Rigid-Flex PCB Manufacturing: Manufacturing robust and versatile rigid-flex PCBs.
- PCB Prototype: Rapid prototyping services to test and refine your PCB designs.
- Rogers PCB: High-frequency PCBs ideal for RF and microwave applications.
- Aluminum PCB: PCBs with excellent heat dissipation properties, perfect for high-power devices.
- Metal Core PCB: Thermal PCBs with metal bases for effective heat management.
- High Tg PCB: High glass transition temperature PCBs for improved thermal performance.
- High Frequency PCB: Designed for high-speed and high-frequency applications, ensuring superior signal integrity.
- Heavy Copper PCB: Built with thicker copper layers for high current and enhanced thermal management.
- HDI PCB: High Density Interconnect PCBs offering advanced circuitry in a compact design for complex applications.
- Custom Cable Assembly: We offer a wide range of customized cable services, hybrid cables, and wire harnesses.
