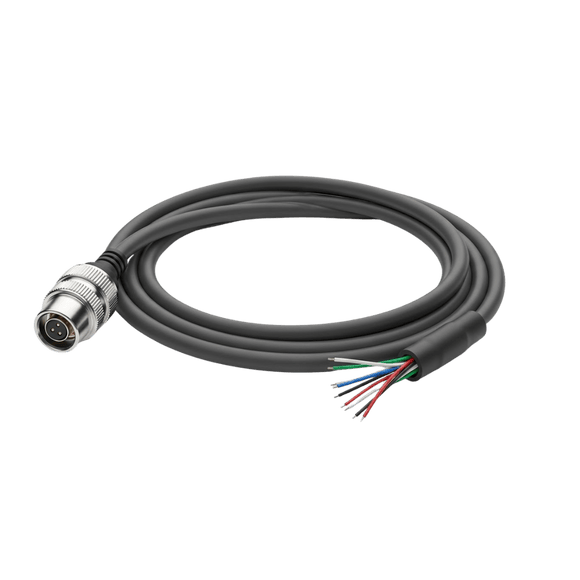

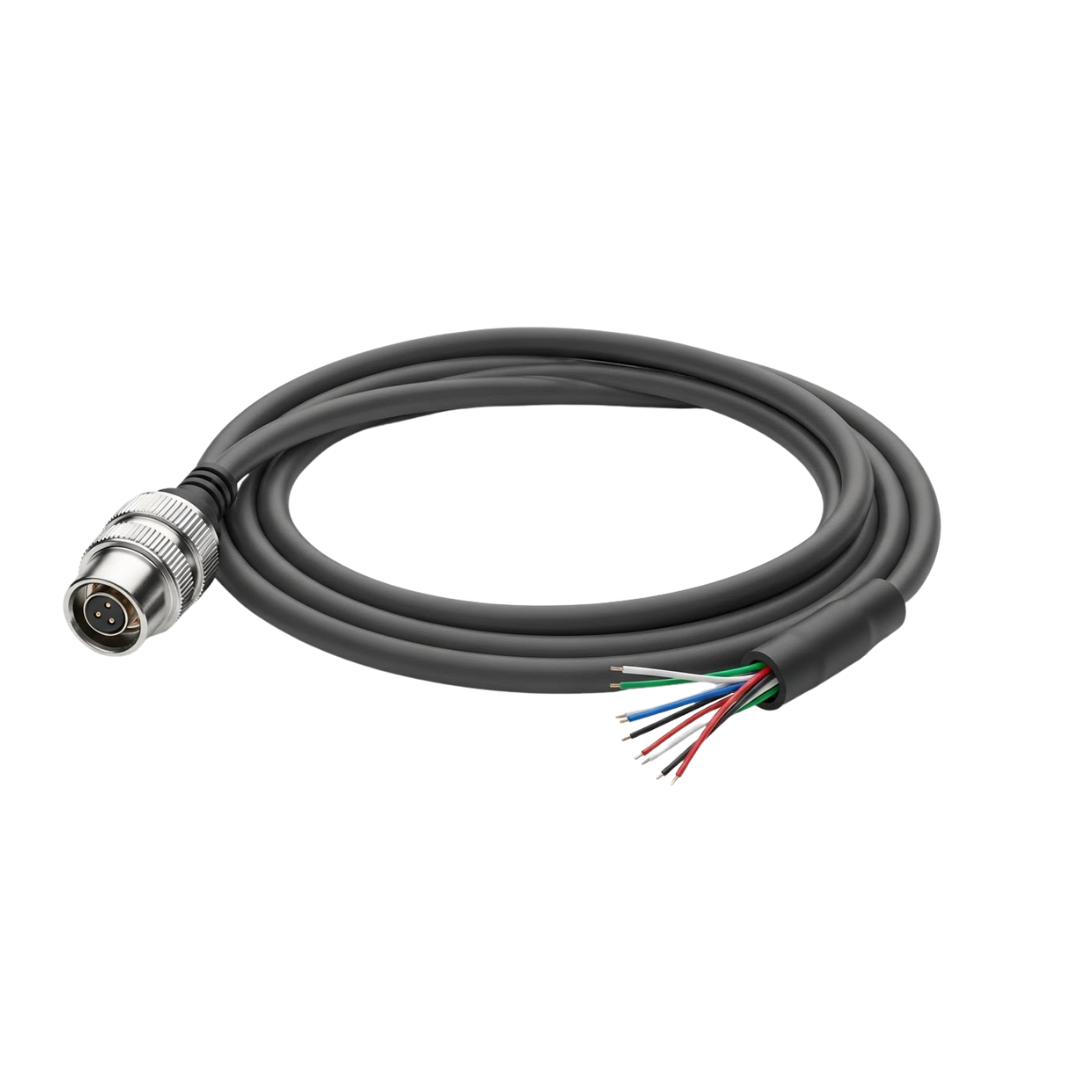

Sensor Cable Assemblies Manufacturing
Sensor cable assemblies are essential in automation, robotics, and industrial equipment as they transmit signals between field sensors and control systems. Sensor cables for the robotics industry are especially prominent, with market forecasts predicting the market will double by 2033. These cables include common variants, such as M12 sensor cable and sensor/actuator cable assemblies.
OurPCB manufactures custom sensor cable assemblies to IPC-A-620 standards. Each cable is engineered for signal integrity and mechanical durability. Failures in sensor wiring disrupt process control and production uptime.
What are Sensor Cable Assemblies?
Sensor cable assemblies are tailored cables with connectors for sensing devices. They link sensors, switches, and transducers to PLCs and distributed I/O modules. M12 sensor cable assemblies use standardized M12 connectors for robust field connections.
Put more simply, sensor/actuator cable assemblies combine sensor lines with actuator power paths and these assemblies reduce field wiring errors and simplify installation.
What are the Benefits of Sensor Cable Assemblies?
Sensor cable assemblies significantly improve system performance, reliability, and maintenance in automated and robotic systems. By simplifying installation and reducing onsite wiring errors, they provide a robust and efficient connectivity solution. Designed for specific motion profiles and connector interfaces, custom assemblies for robotics minimize torque loads, reduce clutter, and prevent mechanical wear in articulated systems.
- Precision shielding controls electrical noise and interference in industrial environments.
- Consistent conductor quality preserves measurement accuracy from sensor to controller.
- Pre-terminated connectors eliminate field termination errors and reduce labor time.
- Standardized interfaces like M12 accelerate commissioning and service swaps.
- Rugged jackets and strain reliefs reduce wear from movement and vibration.
- Sensor/actuator cable assemblies combine power and signals in one harness.
- Custom lengths and breakout options adapt to machine layouts and sensor arrays.
- Modular designs support future expansions and reconfigurations.
Superior Field Reliability
- IP67-rated connectors resist complete dust ingress and withstand water immersion up to 1 m for 30 minutes.
- Marine-grade insulation materials provide chemical resistance against fertilizers, pesticides, and fuel exposure.
Extended Equipment Lifespan
- Temperature-resistant components function reliably from -40 °C to 105 °C, preventing heat damage in engine compartments.
- Reinforced strain relief and secure terminal connections prevent failures from constant diesel engine vibration.
Simplified Troubleshooting
- Color-coded wiring with clear detail reduces diagnostic time by up to 60%.
- Comprehensive documentation includes wiring diagram specifications specific to your tractor model.
Customization Options
- Exact-fit design ensures perfect compatibility with your specific Farmall or Cub Cadet restoration.
- Additional capacity options accommodate future implements or aftermarket electrical accessories you may add later.
Why Choose OurPCB for Sensor Cable Assemblies
Choosing the right partner for sensor cable assembly manufacturing ensures reliable signal transmission, precise performance, and long-term system uptime in demanding automation environments. OurPCB combines industry-recognized quality standards with deep engineering expertise and scalable production capacity. We deliver assemblies built to exact specifications, backed by robust testing and integrated manufacturing support from prototype through volume production.
- Manufactured to IPC-A-620 workmanship criteria with traceable processes.
- Electrical and mechanical testing ensures signal integrity and connector strength.
- Assemblies designed around your sensors, connectors, and environmental needs.
- Support from prototype design through high-volume deployments.
- Optimized fabrication reduces lead times without compromising quality.
- Scalable capacity supports small runs to large production programs.
- Combine sensor cable assemblies with wire harnesses and control cabling.
- Single-source delivery simplifies sourcing and quality control.
Our Custom Cable Assembly Features
A reliable sensor cable assembly starts with the right materials, connectors, and protection. Our custom assemblies are built to resist electromagnetic interference (EMI), mechanical stress, and environmental hazards, ensuring signal integrity throughout their service life. By selecting the optimal jacket compounds, shielding, and connector systems, we deliver long-lasting, low-maintenance cables that perform dependably even in the harshest industrial conditions.
Compliance-Ready Materials
- ROHS-compliant materials and industrial compounds based on application needs.
- Options for oil, UV, and chemical resistance for factory and outdoor use.
Connector Options
- Support for M12, M8, D-Sub, circular, and custom connectors.
- Sealed connectors for washdown and harsh environments.
Environment-Specific Protection
- Jackets and over-braids protect against abrasion and contaminants.
- Enhanced sealing and potting for moisture and splash resistance.
Coverings & Shielding
- PVC, PUR, TPE, braided sleeving, and heat shrink tubing available.
- Shielding options guard against EMI and maintain signal clarity.
Custom Cable Geometry
- Custom lengths, tap-offs, and breakouts to match machine layouts.
- Multi-core designs for sensor/actuator integration and power/signal separation.

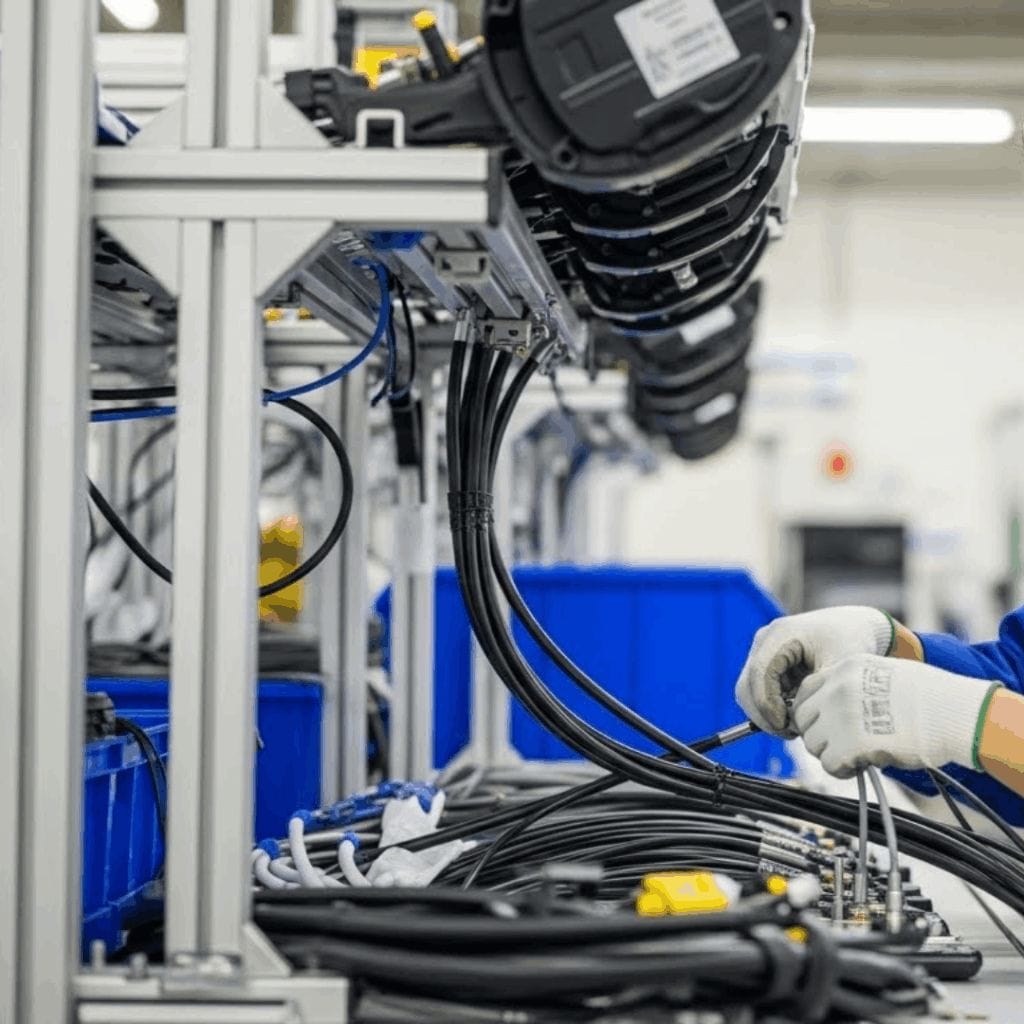

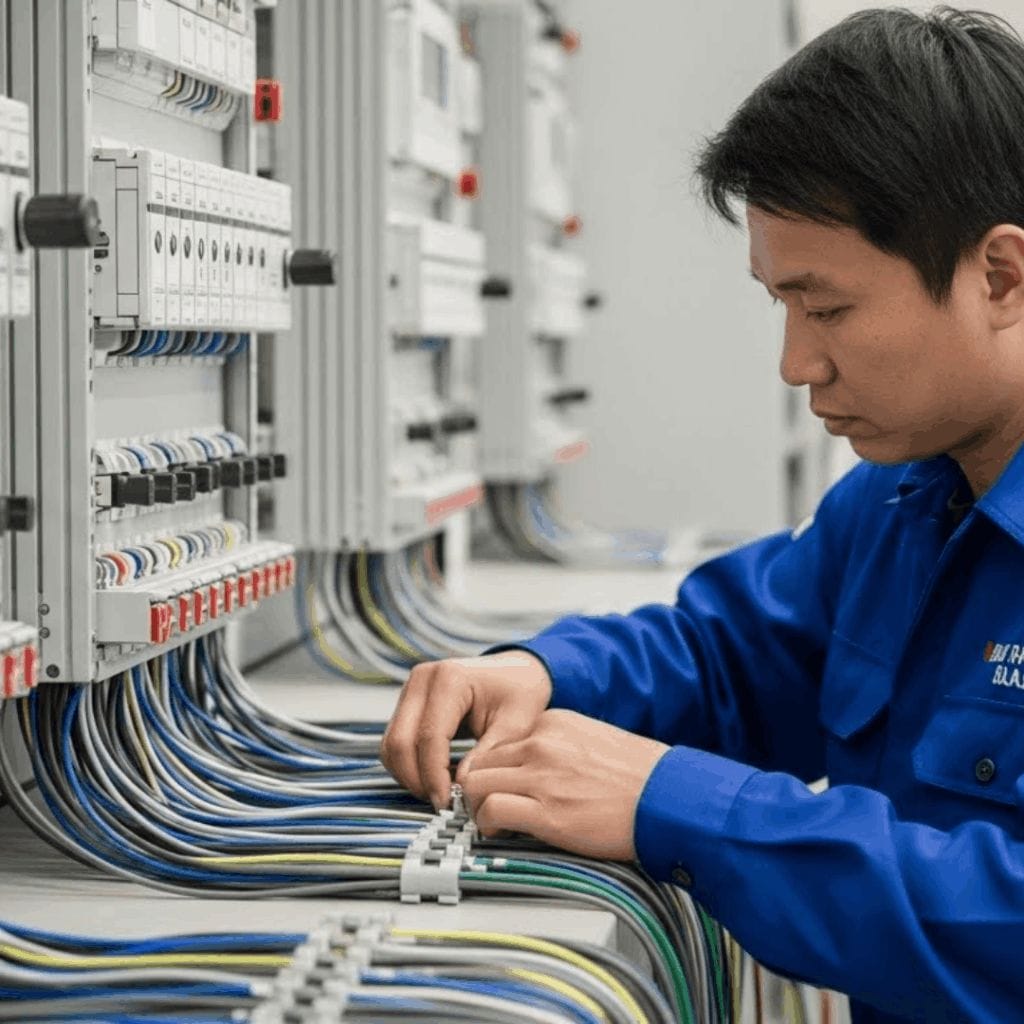

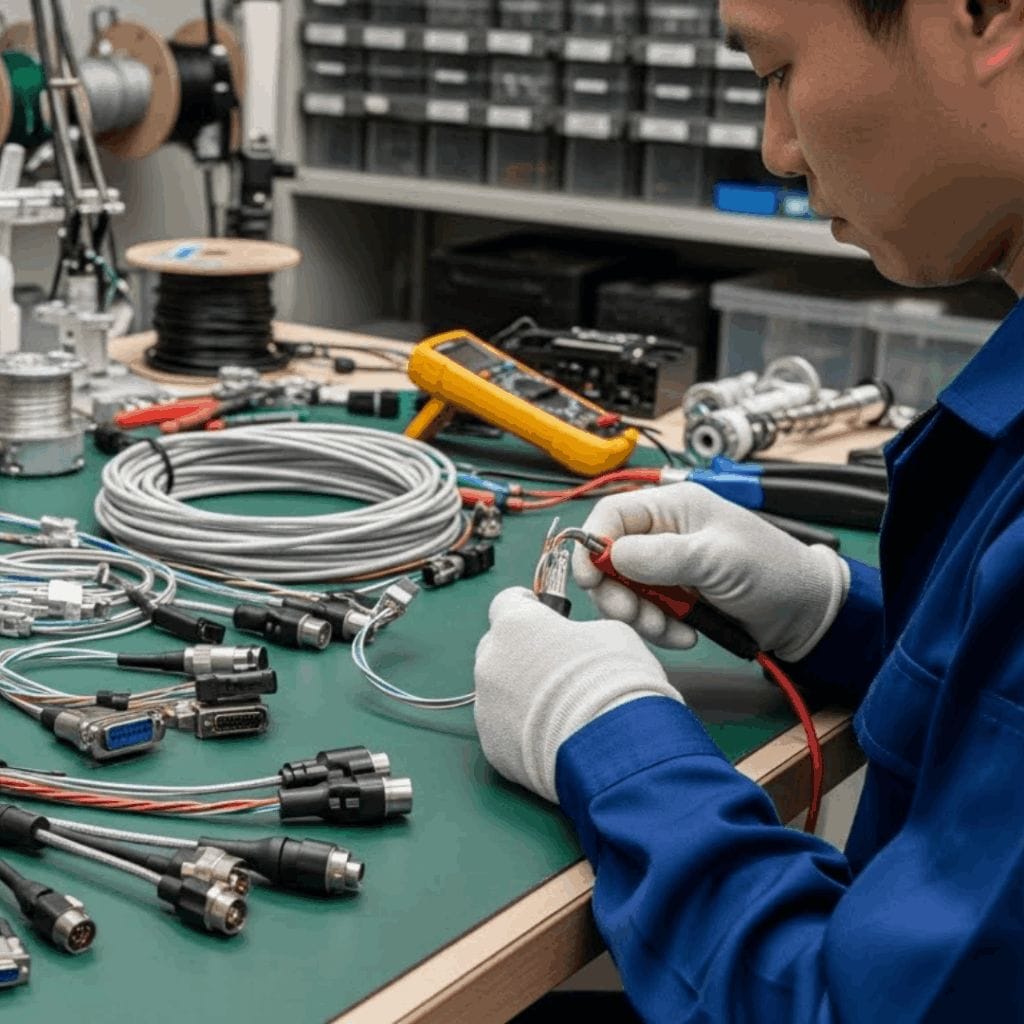

Applications and Industries
Millions of business and innovators use OurPCB

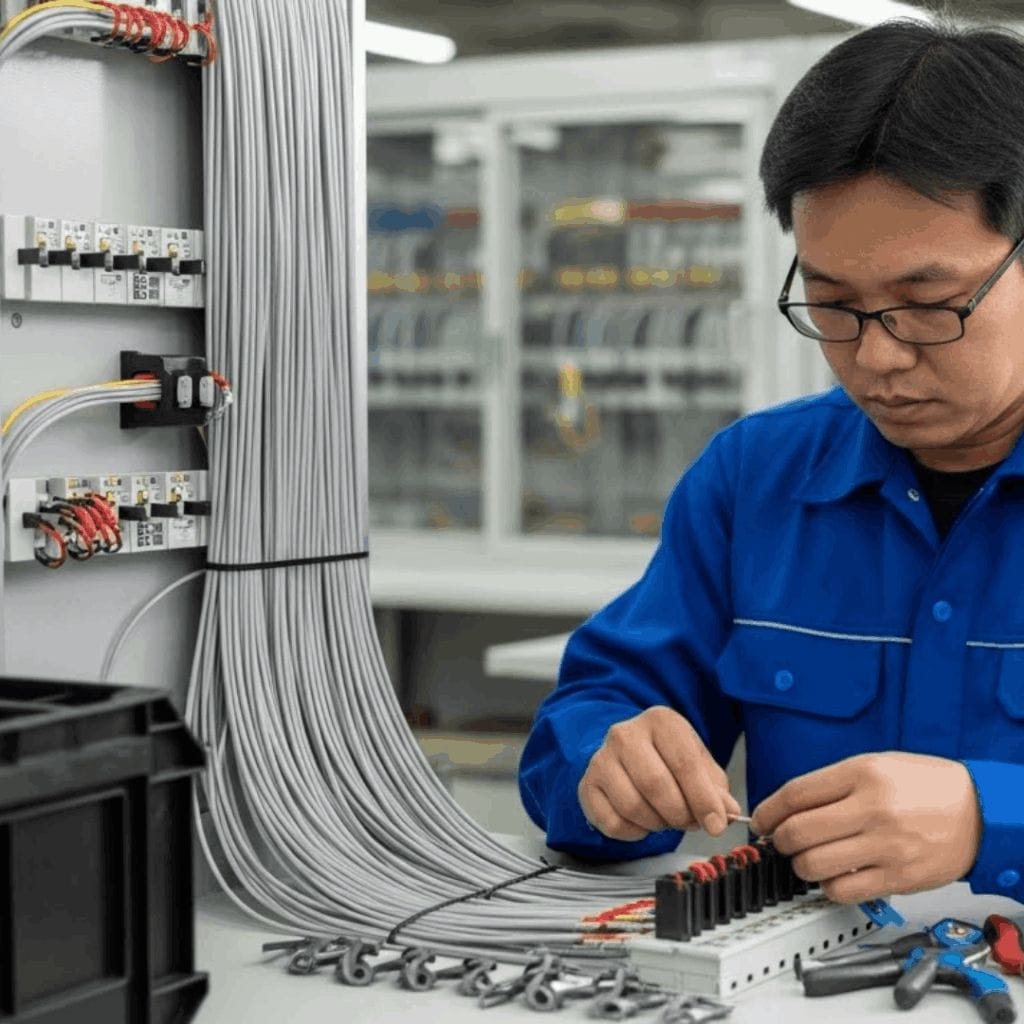

Technical Capabilities
OurPCB offers sensor cable assemblies for robotics that must withstand continuous motion demands, often rated for 10 million+ bend cycles without signal degradation. These cables tolerate torsional motion up to ±360° per meter, allowing reliable performance in multi-axis robot arms and drag chains. Materials like PUR and TPE resist oils, abrasion, and chemicals common on factory floors.
We provide robotic cable assemblies that require compact bend radii as low as 4×–7.5× cable diameter to prevent jacket cracking in tight routing. Shielding with foil plus braid constructs improves EMI protection exceeding 85% coverage for clean sensor and feedback signals. Typical robotic cable temperature ratings range from about –40 °C to +105 °C for industrial automation environments.
Capabilities & Services
- Wire Gauge: 40AWG-120mm²
- Production Capacity: 10,000 pieces/hour
- Wire Cutting Service
- Wire Stripping Service
- Wire Marking Service
- Label Types
- Wire Ends Treatment
Custom Wire/Cable Service:
- Wire/Cable types
- Wire gauge
- Wire/Cable length
- Insulation/Jacket color
- Core numbers etc.
Custom Cable Assembly Capacities:
All kinds of cable assemblies including
- Electrical cable assembly
- Coaxial cable assembly
- Multi-core cable assembly
- Connector to board cable assembly
- Automobile communication cable assembly
- Power transmission cable assembly
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Reach us at
[email protected]
24 hours online
+86-199-30589219
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Sensor Cable Assemblies Manufacturing FAQs
What applications can your sensor cable assemblies support?
Our assemblies support factory automation, robotics, and sensor networks requiring robust connectivity. They’re also used in industrial machinery, vision systems, and networked fieldbus communication in smart factories.
What is an M12 sensor cable?
An M12 sensor cable uses an M12 circular connector for secure, standardized field connections in automation systems. These connectors link sensors, actuators, and network devices with sealed, IP-rated interfaces ideal for harsh environments.
How does OurPCB ensure cable assembly quality?
Material traceability and documented processes are maintained throughout production under IPC/WHMA-A-620 criteria. Electrical and mechanical testing validates signal integrity, connector strength, and assembly durability.
