HVAC Wire Harness Manufacturing Services
Behind every thermostat signal, blower motor startup, compressor cycle, and safety interlock is a carefully engineered HVAC wire harness ensuring stable power and accurate signal transmission.
At OurPCB, we manufacture custom HVAC wire harness assemblies built for reliability in residential, commercial, and industrial climate control systems. A properly designed harness ensures these components communicate without electrical noise, overheating, or failure, even in environments exposed to vibration, humidity, and temperature extremes.
Our harnesses provide the structured electrical backbone that keeps HVAC systems operating efficiently and safely, from compact indoor air handlers to large rooftop units.
What is an HVAC Wire Harness?

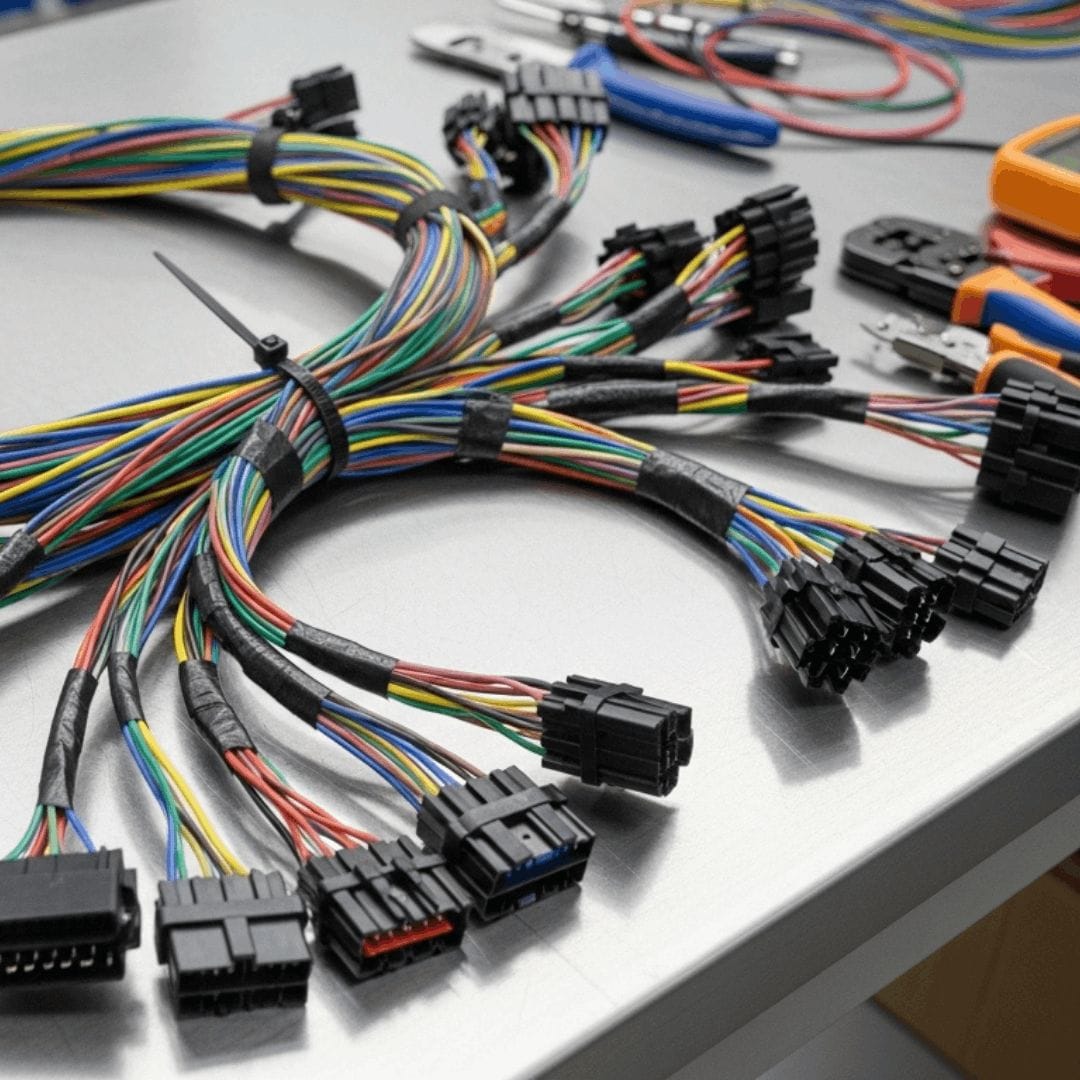

An HVAC wire harness is an organized assembly of wires, terminals, connectors, and protective coverings that distributes power and control signals throughout a heating and cooling system.
Unlike general-purpose wiring, HVAC wire harnesses are designed and built to fit your system’s exact layout, delivering reliable electrical connections between components like blower motors, compressors, thermostats, control boards, pressure switches, and sensors.
These harnesses simplify installation during system assembly and improve long-term serviceability. Instead of loose wiring inside an HVAC unit, a pre-configured harness ensures consistent routing, reduced error rates, and safer electrical performance.
What are the Benefits of Custom HVAC Wire Harnesses?
Custom HVAC wire harnesses deliver measurable advantages in performance, safety, and manufacturability compared to generic wiring solutions. Because heating and cooling systems operate in environments exposed to temperature fluctuations, vibration, and moisture, their electrical interconnections must be engineered for durability and precision.
- Secure crimped and terminated connections reduce electrical failures
- High-temperature insulation options prevent degradation near heat sources
- Strain relief and proper routing reduce conductor fatigue
- Pre-labeled connectors minimize wiring errors during manufacturing
- Plug-and-play assemblies reduce labor time
- Organized routing improves service access
- Moisture-resistant materials for condensate-prone environments
- Flame-retardant insulation for safety compliance
- Vibration-resistant connector systems
- UL-recognized components where required
- IPC/WHMA-A-620 workmanship standards
- ISO 9001 quality management systems
- RoHS compliance
Superior Field Reliability
- IP67-rated connectors resist complete dust ingress and withstand water immersion up to 1 m for 30 minutes.
- Marine-grade insulation materials provide chemical resistance against fertilizers, pesticides, and fuel exposure.
Extended Equipment Lifespan
- Temperature-resistant components function reliably from -40 °C to 105 °C, preventing heat damage in engine compartments.
- Reinforced strain relief and secure terminal connections prevent failures from constant diesel engine vibration.
Simplified Troubleshooting
- Color-coded wiring with clear detail reduces diagnostic time by up to 60%.
- Comprehensive documentation includes wiring diagram specifications specific to your tractor model.
Customization Options
- Exact-fit design ensures perfect compatibility with your specific Farmall or Cub Cadet restoration.
- Additional capacity options accommodate future implements or aftermarket electrical accessories you may add later.
Why Choose OurPCB for HVAC Wire Harness Manufacturing
OurPCB understands the electrical architecture of climate control systems, including low-voltage control circuits and higher-load motor circuits. We ensure correct wire gauge selection, proper insulation class, and connector compatibility for long-term performance.
We manufacture harnesses based on:
- Customer drawings
- Sample replication
- 2D/3D CAD files
- Full collaborative design support
Our engineering team evaluates routing efficiency, bend radius requirements, and heat exposure zones to optimize durability.
Every HVAC harness undergoes:
- 100% continuity testing
- Insulation resistance testing
- Visual inspection of crimps and terminals
- Pull-force verification for terminations
This ensures each assembly performs reliably once installed inside a system.
Whether you require prototype units for a new HVAC model or high-volume production for OEM manufacturing, our facility scales efficiently while maintaining consistent quality.
PCB Assembly Integration for HVAC Systems
Many HVAC systems include control boards for temperature regulation, motor speed control, and connectivity. OurPCB provides fully integrated solutions combining wire harness manufacturing with PCB assembly.
Precise surface mount placement for HVAC control modules and smart connectivity boards.
We manage sourcing, assembly, testing, and delivery of complete control boards.
Available for critical control systems requiring higher reliability.
By integrating harness and PCB production, we reduce supply chain complexity and ensure electrical compatibility between subsystems.
Applications of HVAC Wire Harnesses
HVAC wire harnesses play a vital role in both residential and commercial climate control systems. They manage power distribution and signal transmission between electrical components. This ensures dependable performance across a wide range of heating, cooling, and ventilation applications.
Residential HVAC Systems
- Furnaces
- Air handlers
- Heat pumps
- Split-system air conditioners
- Smart thermostat integrations
Commercial & Industrial HVAC
- Rooftop units (RTUs)
- Chillers
- Ventilation systems
- Building management system (BMS) integrations
- Large-scale air circulation systems
Our harnesses are designed to withstand mechanical vibration, thermal cycling, and long operating hours typical in commercial installations.
Millions of business and innovators use OurPCB
Applications of HVAC Wire Harnesses
HVAC wire harnesses play a vital role in both residential and commercial climate control systems. They manage power distribution and signal transmission between electrical components. This ensures dependable performance across a wide range of heating, cooling, and ventilation applications.
Residential HVAC Systems
- Furnaces
- Air handlers
- Heat pumps
- Split-system air conditioners
- Smart thermostat integrations
Commercial & Industrial HVAC
- Rooftop units (RTUs)
- Chillers
- Ventilation systems
- Building management system (BMS) integrations
- Large-scale air circulation systems
Our harnesses are designed to withstand mechanical vibration, thermal cycling, and long operating hours typical in commercial installations.
Technical Capabilities
Our technical capabilities support wire gauges ranging from 28 AWG to 10 AWG. We offer insulation options including PVC, XLPE, PTFE, and silicone materials. Temperature ratings reach up to 200°C depending on selected insulation.
We support low-voltage control circuits and higher-rated motor power applications. Custom overmolding and strain relief solutions are available for durability. Our facility uses automated cutting, stripping, and precision crimping equipment.
Our use of automated equipment and harness board assembly ensures consistent quality, repeatability, and electrical integrity in every unit.
Capabilities & Services
- Wire Gauge: 40AWG-120mm²
- Production Capacity: 10,000 pieces/hour
- Wire Cutting Service
- Wire Stripping Service
- Wire Marking Service
- Label Types
- Wire Ends Treatment
Custom Wire/Cable Service:
- Wire/Cable types
- Wire gauge
- Wire/Cable length
- Insulation/Jacket color
- Core numbers etc.
Custom Cable Assembly Capacities:
All kinds of cable assemblies including
- Electrical cable assembly
- Coaxial cable assembly
- Multi-core cable assembly
- Connector to board cable assembly
- Automobile communication cable assembly
- Power transmission cable assembly
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
Reach us at
[email protected]
24 hours online
+86-199-30589219
Mon-Fri: 24 hours,
Sat: 9am-6pm, GMT+8
HVAC Wire Harness Manufacturing Services FAQs
What makes HVAC wire harnesses different from standard wiring?
HVAC harnesses are engineered for structured routing within heating and cooling equipment. They are designed to handle temperature fluctuations, vibration, and moisture while supporting both power and low-voltage control circuits.
Can you manufacture harnesses for smart HVAC systems?
Yes. We support harnesses used in Wi-Fi-enabled thermostats, IoT-enabled systems, and building automation integrations.
Do you support OEM HVAC manufacturers?
Absolutely. We provide prototype, low-volume, and high-volume production for OEM HVAC equipment manufacturers.
Can you replicate an existing HVAC wire harness?
Yes. We can reverse engineer from physical samples and optimize for manufacturability and reliability.
Partner with OurPCB for Reliable HVAC Wire Harness Solutions
Climate control systems depend on precise electrical coordination. A high-quality HVAC wire harness reduces field failures, simplifies manufacturing, and improves system longevity.
OurPCB delivers engineered harness assemblies tailored to your HVAC platform — from compact residential units to large commercial installations.
